PRYOR Alphanumeric Steel Type Marking Sets .

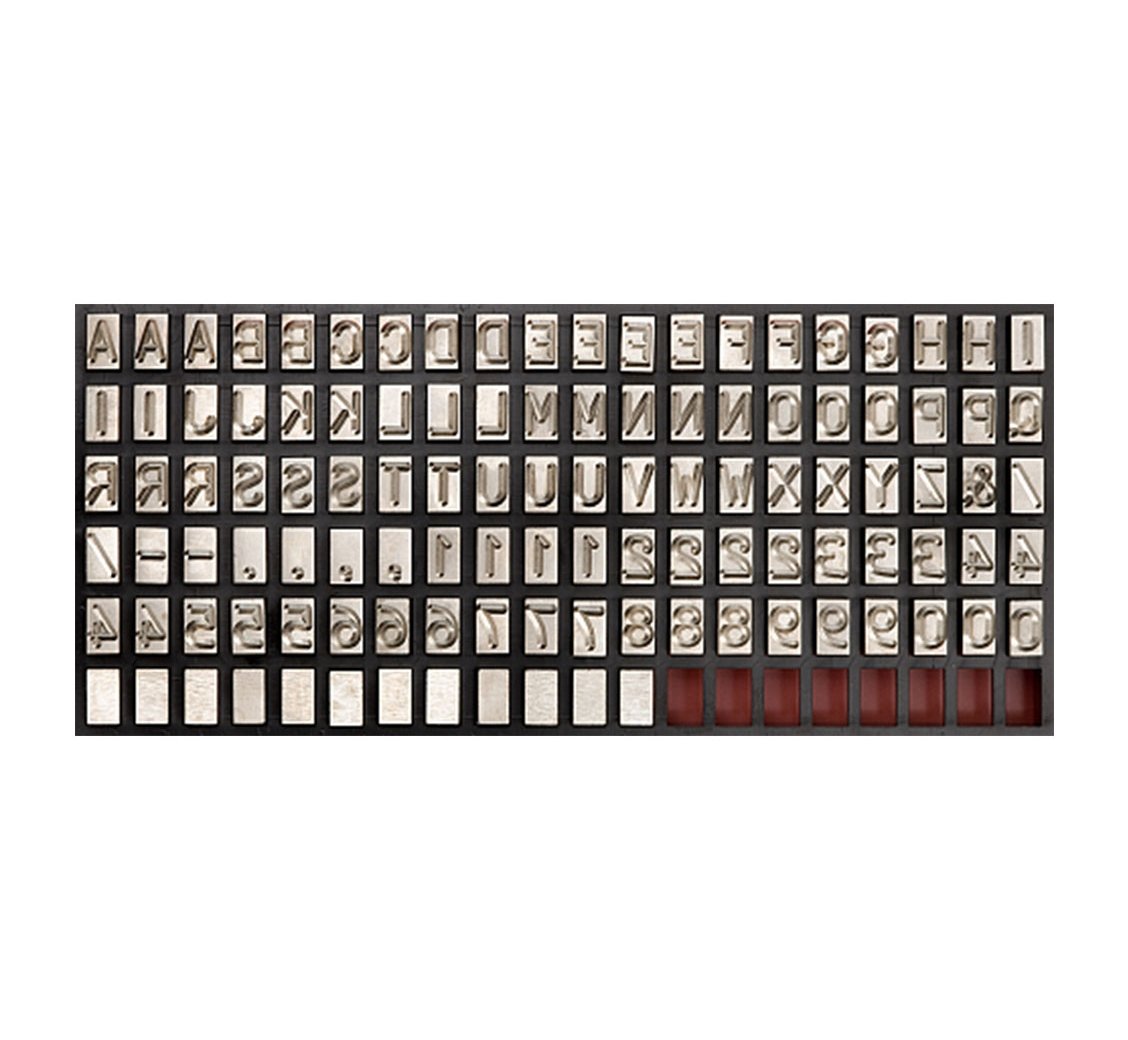

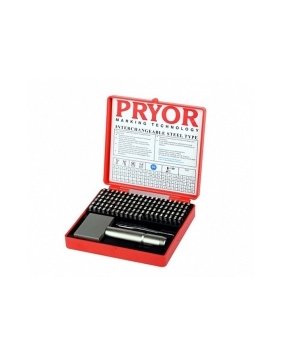

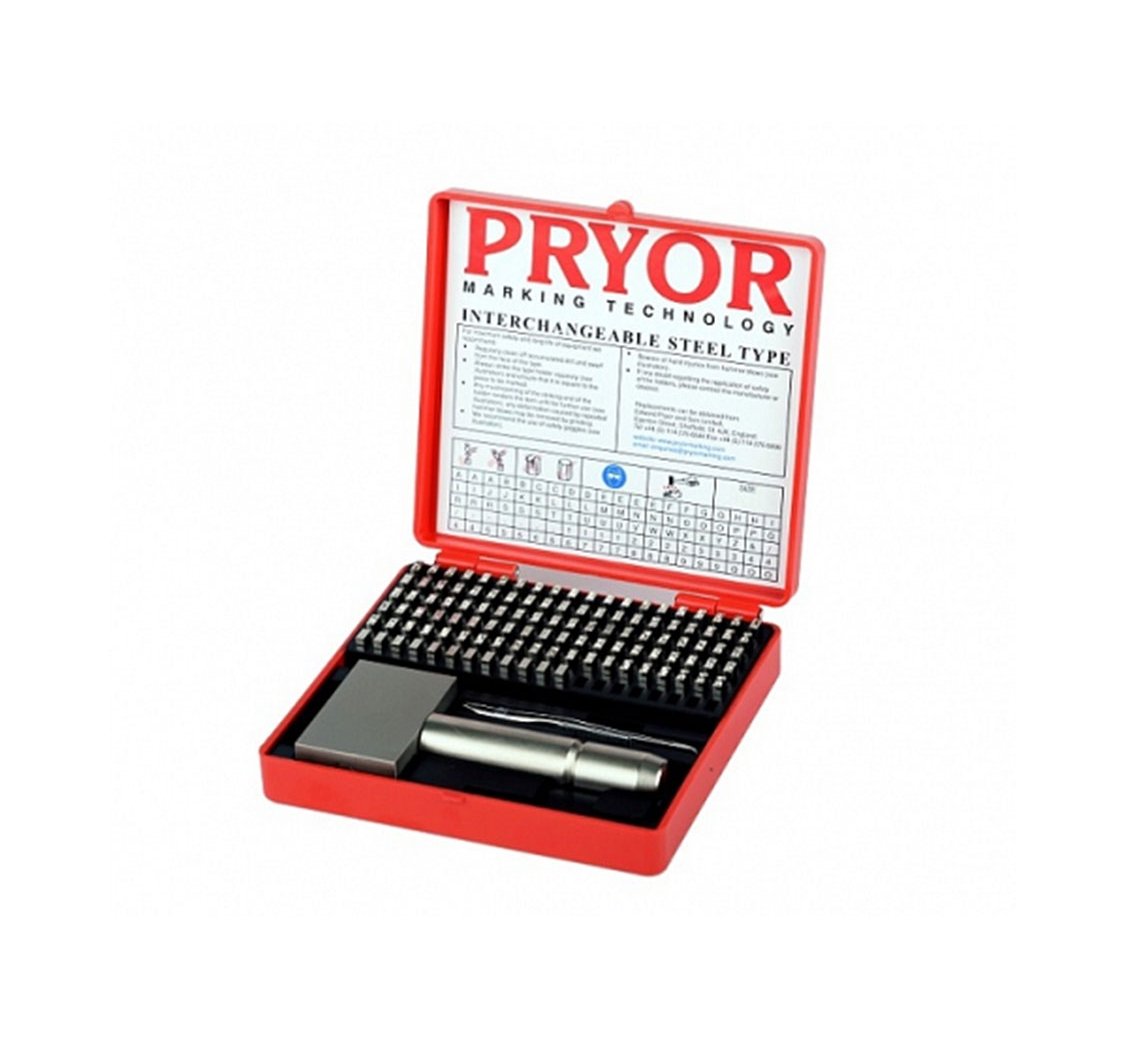

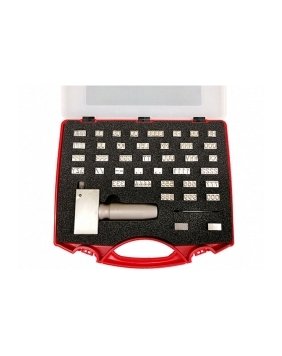

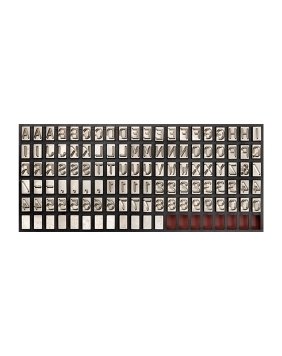

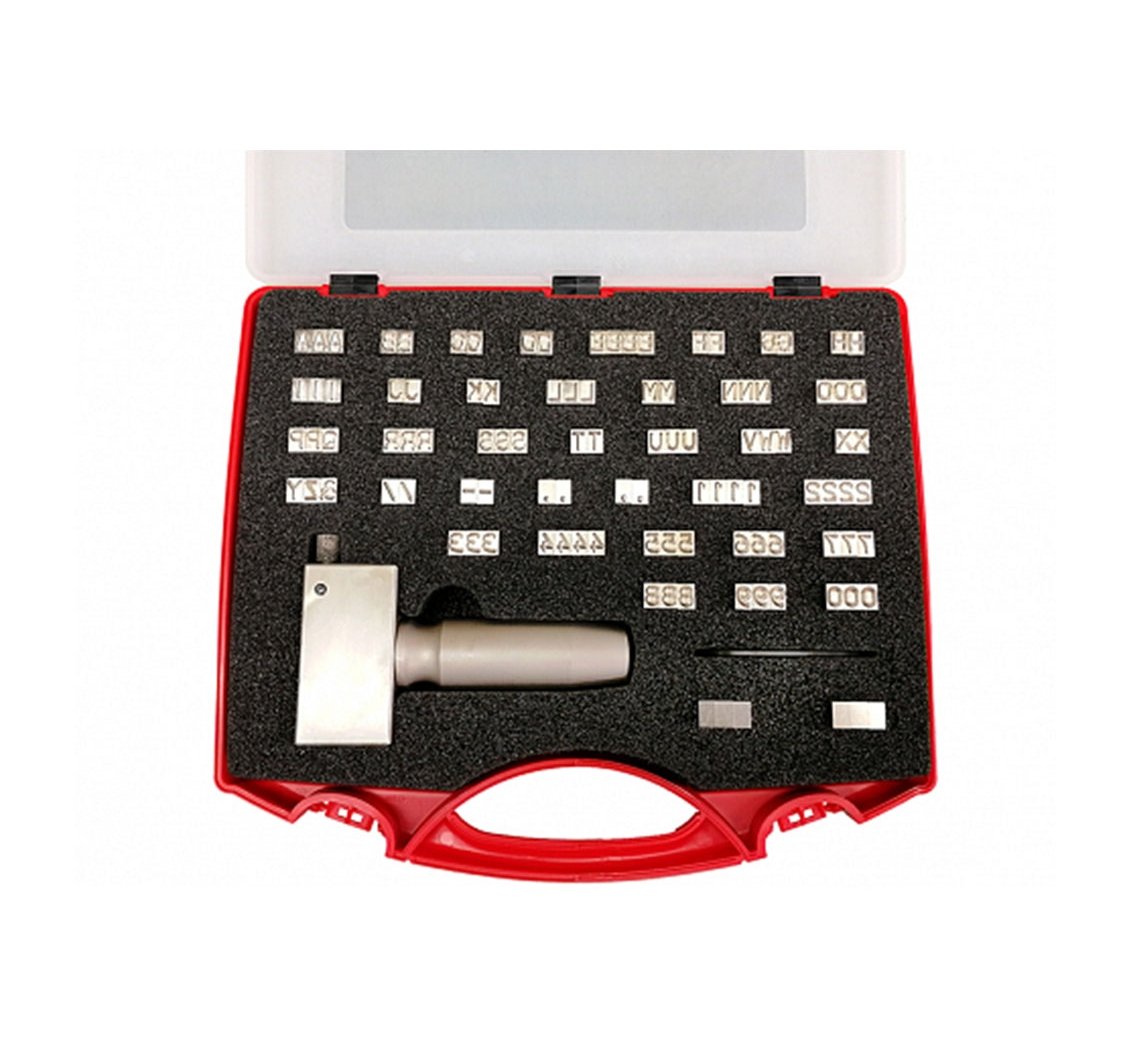

A high precision interchangeable Marking Tool Set for quick, straight and accurate multi-character marking by hand and hammer. Sharp Faced engraving style to produce clear positive impressions. Comprises 100 alpha-numeric and punctuation characters according to the most common use plus spacer pieces for non-marking positions and a single row Hand Holder supplied in a strong case with inserts for accurate storage.

  • Available in 9 Character heights.
  • Produce permanent readable impressions on a range of materials including metal and plastic up to a maximum hardness of 37 Rockwell C.
  • Ideal for all batch and general purpose marking applications.

Pryor Alphanumeric Steel Type Marking Sets Features :

  • Making a mark with Steel Type Sets saves time - simply build an inscription into the slot in the Holder and in just one stroke, a series of letters and figures can be indented with uniform legibility.
  • Hand Holders designed to provide accurate Type location and positive locking. Simply adjust the grub screw with the Allen Key provided for quick inscription change.
  • Safety Grip available as an accessory to work with Hand Holders allows the user to make a controlled and confident strike by keeping the fingers at a safe distance, reducing the risk of injury and assisting in making a good quality mark.
  • Steel Type with uniformity of blank size, character position, and depth from one piece to another allows a straight, consistent quality mark to be made on a range of materials including metal and plastic up to a maximum hardness of 37 Rockwell C.
  • Manufactured under stringent BS EN ISO 9001:2008 quality controls and exacting standards.

Character Height

Holder Capacity - number of pieces - single row

Maximum length of marked inscription

1.0mm (.040")

12

20mm

1.5mm (1/16"

12

20mm

2.0mm (5/64")

14

29mm

2.5mm (3/32")

12

29mm

3.0mm (1/8")

9

29mm

4.0mm (5/32")

9

39mm

5.0mm (3/16")

8

39mm

6.0mm (1/4")

6

40mm

10.0mm (3/8")

6

57mm

Blank Sizes of the sets available, known as Pryor Type

(H) Character Height (C) Blank Length (B) North/South (A) East/West
mm inch mm inch mm inch mm inch
1.0mm .040" 15.87mm 5/8" 3.20mm 1/8" 1.60mm 1/16"
1.50mm 1/16" 15.87mm 5/8" 3.20mm 1/8" 1.60mm 1/16"
2.00mm 5/64" 19.05mm 3/4" 6.40mm 1/4" 2.00mm 5/64"
2.50mm 3/32" 19.05mm 3/4" 6.40mm 1/4" 2.50mm 3/32"
3.00mm 1/8" 19.05mm 3/4" 6.40mm 1/4" 3.20mm 1/8"
4.00mm 5/32" 19.05mm 3/4" 8.00mm 5/16" 4.00mm 5/32"
5.00mm 3/16" 19.05mm 3/4" 8.00mm 5/16" 4.80mm 3/16"
6.00mm 1/4" 19.05mm 3/4" 9.50mm 3/8" 6.40mm 1/4"
10.00mm 3/8" 25.40mm 1" 16.00mm 5/8" 9.50mm 3/8"

To receive further information on Alphanumeric Steel Type Marking Sets, please complete the following form. We will reply as soon as possible.
