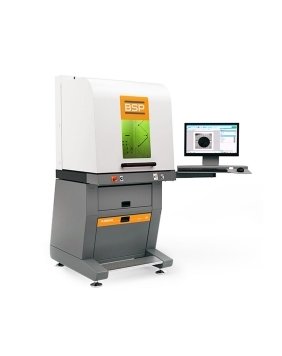

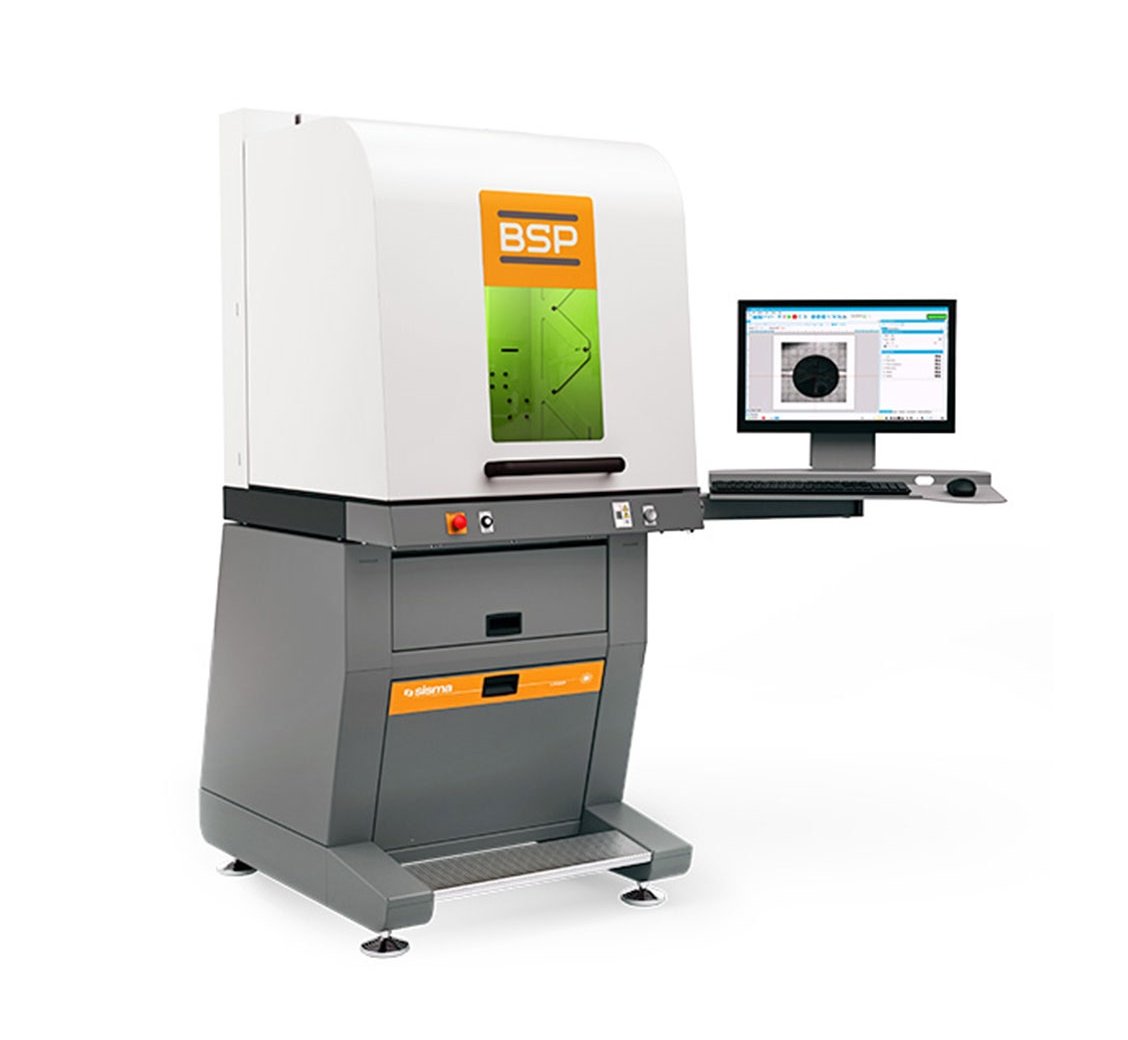

SISMA BSP 3-axis marking laser
Versatile
Compact, solid, with a large working chamber and a 490 mm door opening on three sides. BSP allows to work up to a max volume of 300 x 300 x 300 mm and load pieces up to 20 kg of weight.
Sturdy
Its granite structure assures durability, precision and stability over time.
Flexible
The full range of Yb laser sources supplied by SISMA can be installed on the BSP model. Together with the optional coaxial vision system (CVS) it becomes a highly productive and flexible machine.
| Description | 200F | 200F EP | 300F | 400F | 500F | 700F | |||
| Average Output Power | 20 | 20 | 30 | 40 | 50 | 70 | |||
| Wave lenght | 1064 nm | ||||||||
| Laser Technology | Yb | ||||||||
| Repetition Rate Range | 1-500 | 1-1000 | 1-500 | 1-1000 | 1-500 | 1-500 | |||
| Pulse Width | 260/40 | 3-500 | 260/40 | 10-240 | 250/40 | 260/40 | |||
| Max Pulse Energy | 1/0,21 | 0,03-1 | 1/0,21 | 0,16-1,33 | 1/0,21 | 1/0,21 | |||
| M2 ≤ | 1,6 | 1,6 | 1,6 | 3,5 | 1,6 | 1,6 | |||
| Guide Laser | Class 2M Red Laser Diode; λ=650 nm; 2 mW | ||||||||
| Temperature Range | Operative 10°C to 35°C, non condensing | ||||||||
| Cooling System | Forced-aired cooling | ||||||||
| X-Y axis stroke [mm] | 300 | ||||||||
| Z axis stroke [mm] | 360 | ||||||||
| 4th axes | Optional | ||||||||
| Focal | F100, F160 (std), F254, F330 | ||||||||
| Power supply | 230V, 50/60 Hz 1ph - 1KW | ||||||||
| Working area | 300x300x280 h mm | ||||||||
| Dimensions (L x W x H) | 775x1088x1800 mm1500x1088x1800 mm with monitor support | ||||||||
| Weight | 500 kg | ||||||||
