SISMA BSS 3D Diode and Ytterbium fiber marking laser

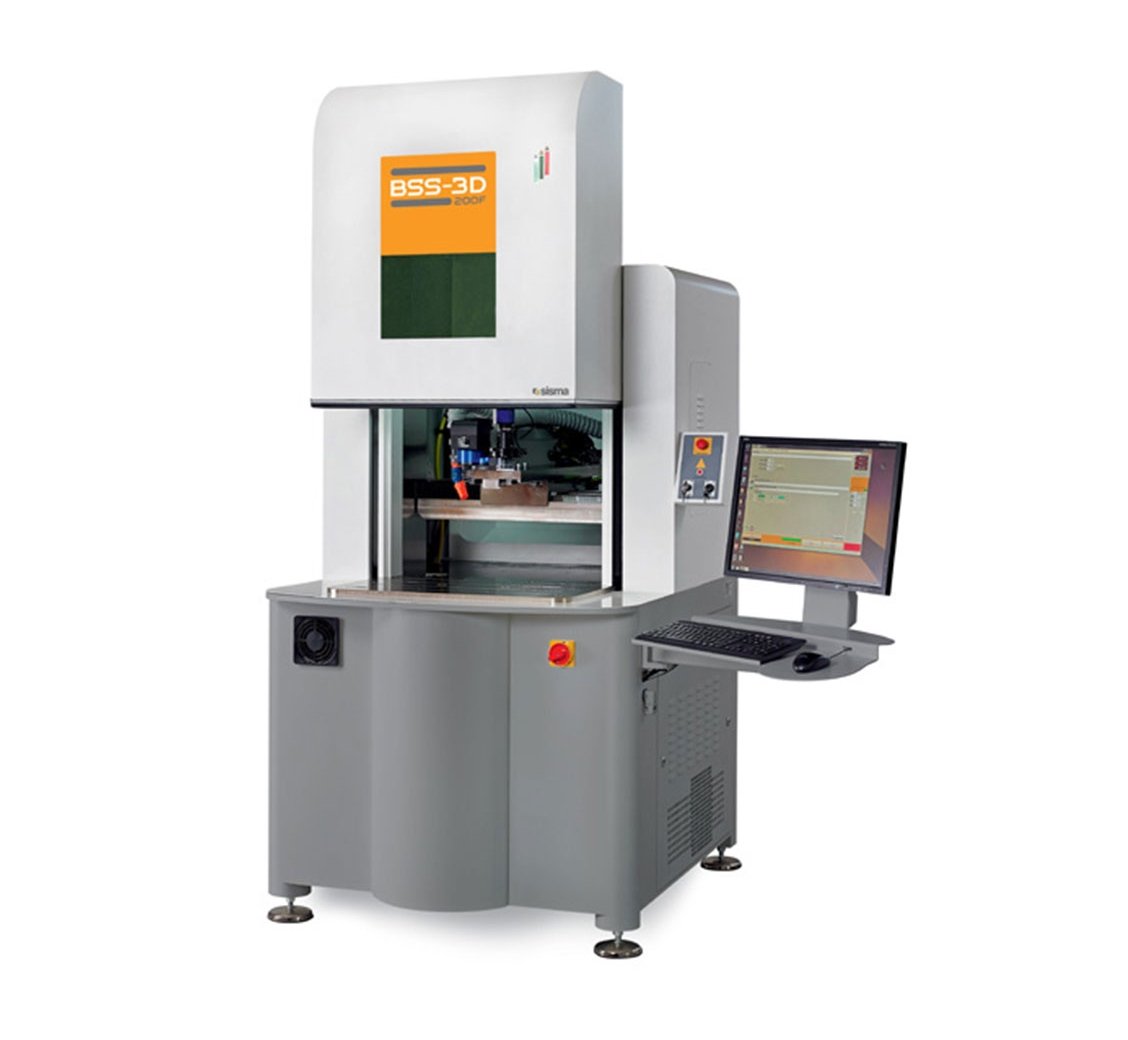

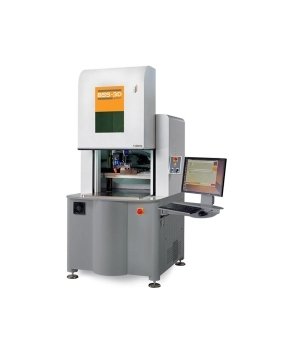

BSS-3D, a 2D-3D laser marking and engraving system with base.

Versatile
The large and robust working chamber makes the BSS-3D machine suitable for marking, 2D-3D engraving and micro-cutting of large pieces (up to 700 x 400 x 380 mm) and weight (100 kg).

Accurate
The BSS-3D machine allows to obtain a precision positioning of ± 0.05 mm inside the working area and a repeatability of  ± 0.02 mm while the axes, with encoder control and brushless motors, have a range of motion of 320 x 320 x 370 mm (x-y-z).

Digitally advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining, and is suitable for the integration of vision systems (coaxial and non-coaxial).

Model 200F 200F EP 300F 400F 500F 700F GREEN UV
Laser source Yb Yb Yb Yb Yb Yb Nd:YVO4 Nd:YVO4
Wavelength 106 nm 1064 nm 1064 nm 1064 nm 1064 nm 1064 nm 532 nm 355 nm
Average laser power 20 W 20 W 30 W 40 W 50 W 70 W 10 W 3 W
Pulse frequency 1÷500 Khz 1÷1000 Khz 1÷1000 Khz 1÷1000 Khz 1÷500 Khz 1÷500 Khz 1÷300 Khz 1÷300 Khz
Pulse duration 260/40 ns 3-500 ns 260/40 ns 260/40 ns 10-240 ns 250/40 ns 30 ns 30 ns
Max pulse energy 1/0,21 mJ 0,03-1 mJ 1/0,21 mJ 1/0,21 mJ 0,16-0,33 mJ 1/0,21 mJ 0,25 mJ 0,25 mJ
Beam quality ≤ 1,6 M² ≤ 1,6 M² ≤ 1,6 M² ≤ 1,6 M² ≤ 1,6 M² ≤ 1,6 M² ≤ 1,2 M² ≤ 1,2 M²
Laser spot diameter 20 μm 20 μm 20 μm 40 μm 20 μm 20 μm 12 μm 12 μm
Max marking speed 2000 mm/s
Laser guide Class 2M Red Laser Diode; λ=650 nm; 2 mW
Repeatability 0,02 mm
Max piece weight 100 kg
Max working area 700 x 400 x 390 mm
Power supply 230 V ± 15% 50/60 Hz 1ph - 1 kW
Dimensions (WxDxH) 1172 mm (1765 mm with monitor support) x 1552 mm x 1775 mm (2275 mm with open door)
Weight 900 kg
