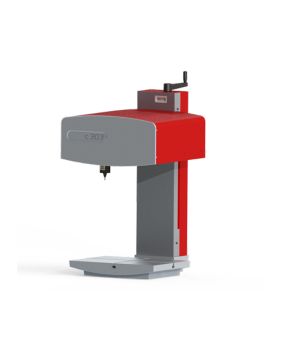

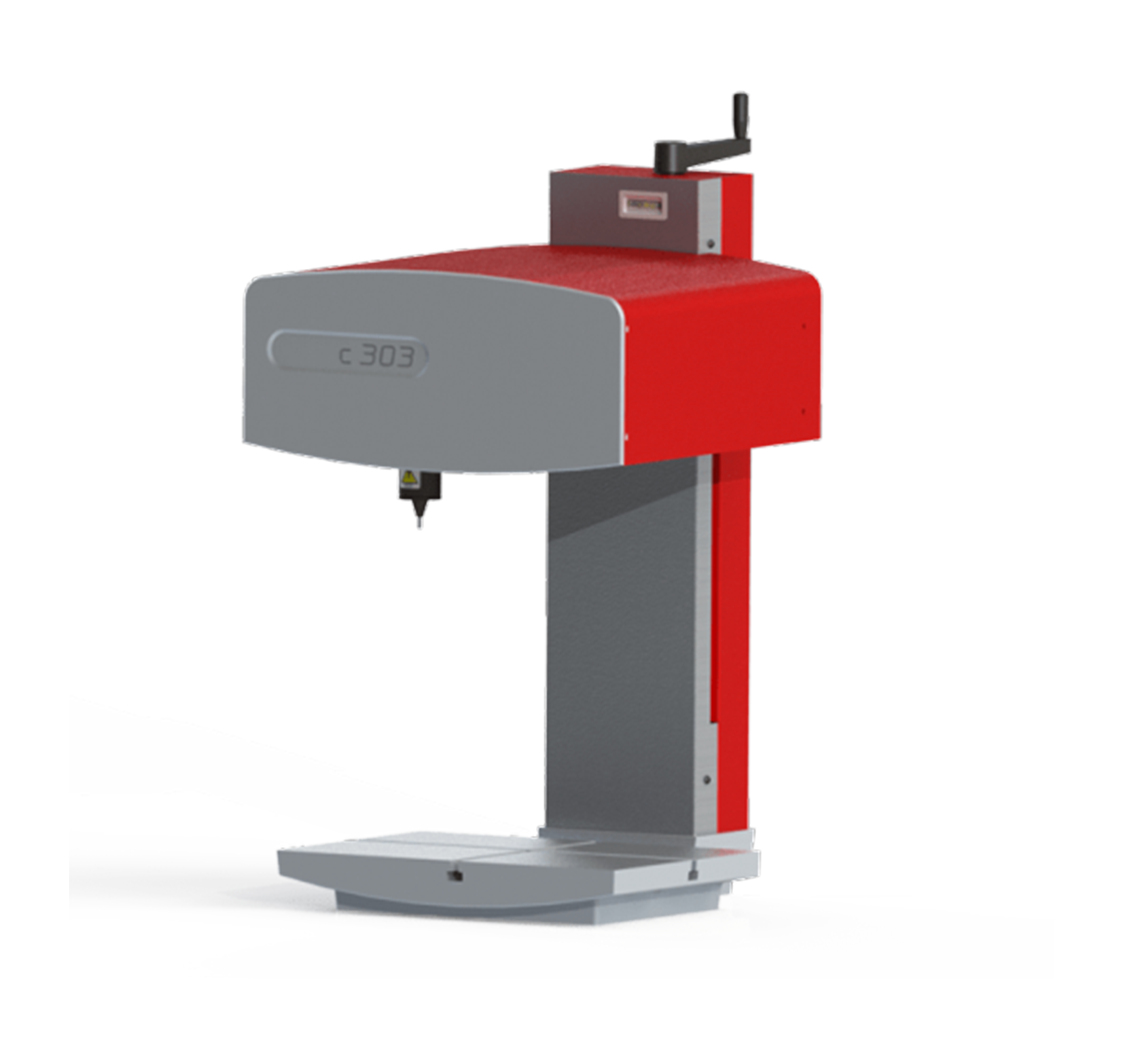

SIC MARKING E10 C303 Dot Peen Marking Machine

VERSATILE DOT PEEN COLUMN MOUNTED MARKING MACHINE

Among the range of benchtop marking machineS, the extreme accuracy and speed of the c303 mounted unit are unmatched. Using a unique electromagnetic marking technology, the column mounted marking machine c303 can adapt to various shapes and surface conditions, whether flat, concave, convex, circular, or raw. Capable of marking any material (including plastics and hardened steel up to 62HRC), it requires only one source of energy. Its integrated counter, the large 300x150 mm marking window and the LED lighting make it an extremely accurate and an all-purpose marking machine.



  • Speed and Accuracy
  • Large Marking Window
  • Comfortable to Operate
  • Cost Effective

MECHANIC FEATURES

Marking Window:

300 x 150 mm

Weight:

30 kg

Dimensions:

385 x 350 x 704 mm
Stylus: Carbide 60 mm

ELECTRONIC FEATURES

The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.

Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.

Dimensions:

322 x 380 x 112 mm

Weight:

5 kg

LCD Screen Resolution:

480 x 272 p.

Keyboard:

QWERTY-Integrated, Membrane Overlay

Power:

300 Watt

Power Supply:

Single Phase (85 to 260VAC, 50-60Hz)

Number of Controlled Axis:

2 (optional 3 and 4 axis available)

Card Options:

Booster (deep marking) and Ethernet (communication)

USB Port:

Transfer of Marking Files
