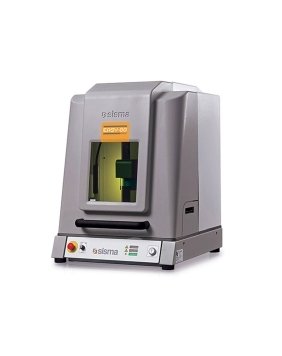

SISMA EASY-GO Marking laser system with fiber source
SIMPLE
Small-sized desktop marking laser, equipped with a motorized Z axis, marking start button and side openings.
ADAPTABLE
Available in both class 1 (closed version) and class 4 (open version), with 20W and 30W laser sources. It can be integrated with Sisma accessories, like the spindle and the plate dragger.
DIGITALLY ADVANCED
Entirely developed by Sisma, the integrated software is the ideal solution for file management and parameters defining, even for complex jobs.
EASY-GO 200F
|
Average power |
20 W |
|
Wavelength |
1060 nm ~ 1085 nm |
|
Single pulse energy |
1 mJ @20 kHz |
|
Pulse duration |
120 ns @20 kHz |
|
Beam quality |
<1,8 M2 |
|
Red pointer |
Class 2M diode red; λ=650 nm; 2 mW |
|
Working temperature |
10ºC - 35ºC |
|
Cooling system |
Forced air |
|
Z-axis stroke |
340 mm |
|
4th axes |
Optional |
|
Power supply |
230 V ± 15% 50/60 Hz 1ph CEE 16 plug |
|
Dimensions |
555 mm x 685 mm x 795 mm |
|
Weight |
75 kg |
EASY-GO 300F
|
Average power |
30 W |
|
Wavelength |
1060 nm ~ 1085 nm |
|
Single pulse energy |
1 mJ @20 kHz |
|
Pulse duration |
120 ns @20 kHz |
|
Beam quality |
<1,8 M2 |
|
Red pointer |
Class 2M diode red; λ=650 nm; 2 mW |
|
Working temperature |
10ºC - 35ºC |
|
Cooling system |
Forced air |
|
Z-axis stroke |
340 mm |
|
4th axes |
Optional |
|
Power supply |
230 V ± 15% 50/60 Hz 1ph CEE 16 plug |
|
Dimensions |
555 mm x 685 mm x 795 mm |
|
Weight |
75 kg |
