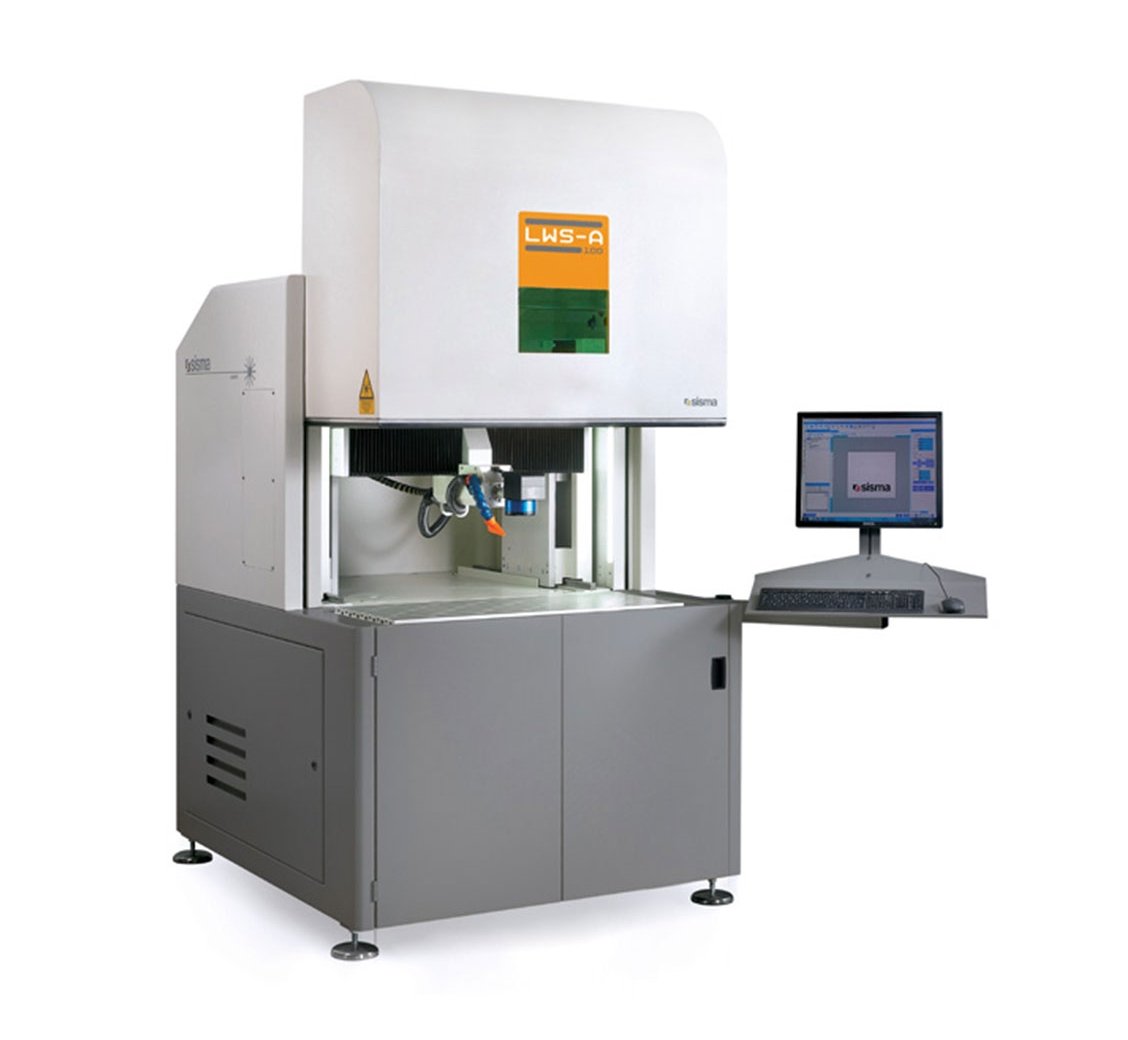

SISMA LWS-A Working station with X-Y-Z axes
Laser marking stations with three axes
Flexible
The gantry structure, open on three sides, combined with the possibility of moving or removing the working plane, makes it possible to process heavy and large pieces. LWS systems can be customized to meet every need (for example automatic processes).
Modular
The LWS systems can be fitted with many standard features such as the rotary marking axis and marking head for marking angle adjustment and the coaxial vision system (CVS) ideal for automatic and high precision processes.
Sturdy and intuitive
The sturdy structure, made with special care to technical and aesthetic details, guarantees repeatability of results over time. The ergonomic design, combined with the software developed by SISMA, make LWS systems easy to use even for complex processes.
| Characteristics | Value | ||||||||
| Z axis | 500mm motorized | ||||||||
| X, Y axes | X: 520 mm, Y: 400 mm, motorized | ||||||||
| Working plane | Lowerable – removable | ||||||||
| Door opening | Motorized | ||||||||
| Available laser sources | 3 W – 5 W – 10 W – 20 W – 30 W – 40 W – 50 W – 70 W – 100 W | ||||||||
| Power supply | 1ph, 230 V ± 15% 50/60 Hz – 1 kW | ||||||||
| Dimensions (WxDxH) | 1350 mm x 1200 mm x 2050 mm (2650 mm open) | ||||||||
| Weight | 500 kg | ||||||||
