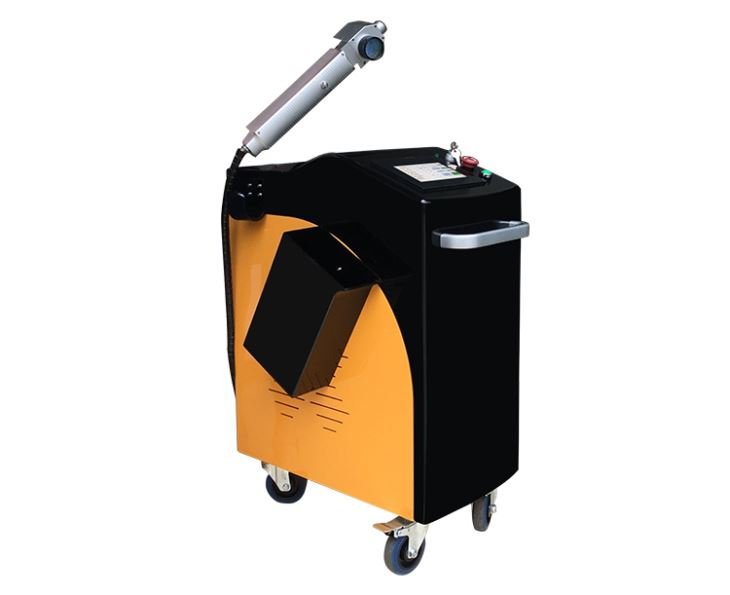

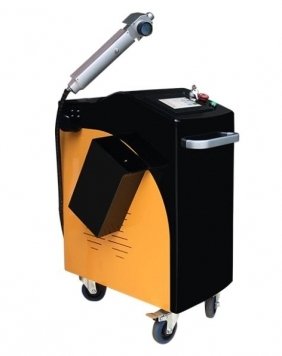

The laser cleaning machine is equipped with an imported IPG laser source for higher clening requirements of the customers. It’s very easy to install and operation. It could be used with no chemical reagents,no media, dust-free and anhydrous cleaning, with the advantages of auto focus, fit crank surface cleaning, high surface cleanliness. The laser cleaning machine can clear the surface resin, oil, dirt, dirt, rust, coating, coating, paint, etc.
|
Model |
MRJ-FLC-100A |
||
|
Laser Power |
IPG 100W/Fiber |
||
|
Clean Length |
1mm to 100mm |
||
|
Cleaning speed |
1-1000mm/s |
||
|
Focus Length |
F=254±25mm/500±25mm |
||
|
Cleaning ability |
15M²/Hour |
||
|
Drift for a long time |
<0.5mRad |
||
|
The maximum scan angle |
±15° |
||
|
Repeat accuracy |
8μRad |
||
|
Cooling |
Air Cooling |
||
|
Cable Length |
3m to 6m(optional) |
||
|
Dimension |
670x436x865mm |
||
|
Weight |
47±0.1KG |
||
|
Working Temperature |
0℃-45℃ |
||
|
Storage temperature |
-10 to +60℃ |
||
|
Clean head weight |
2.5±0.1KG |
||
|
Control Screen |
7 inch (Can be customized) |
||
|
Warranty time |
2 years |
||
To receive further information on MRJ-FLC-100A, please complete the following form. We will reply as soon as possible.
