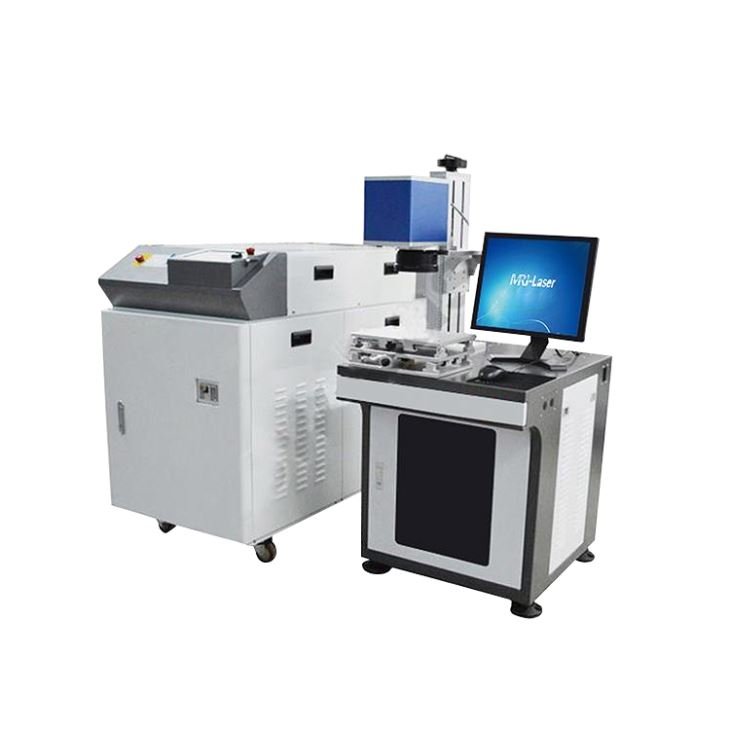

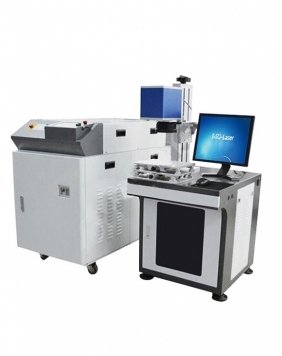

MRJ-Laser MRJ-UV-5A Laser Marking Machine
Equipment Introduction: MRJ-UV-5A series ultraviolet laser marking machine has tiny focus beam spot, narrow pulse width laser processing time on materials is very short with barely heat impact, widely used in the high-end market of ultra precision laser processing, marking effect is more...
Product Performance Parameters
|
MRJ-UV-3A |
MRJ-UV-5A |
MRJ-UV-8A |
|
|
Laser Wavelength |
355nm |
355nm |
|
|
Laser Power |
3W |
5W |
8W |
|
Marking Field |
100mmx100mm |
50x50/100x100mm |
|
|
Marking Speed |
14000mm/s |
14000mm/s |
|
|
Beam Quality |
M2<1.2 |
M2<1.2 |
|
|
Repetition Frequency |
15-100KHz |
15-100KHz |
|
|
Minimum Line Width |
10um |
10um |
10um |
|
Minimum Character |
0.05mm |
0.05mm |
|
|
Repetition Precision |
±0.002mm |
±0.002mm |
|
|
Machine Power |
600W |
800W |
1000W |
