Pryor manufactures and supplies a range of manual and pneumatic Percussion Presses. These are ideal for use with a Pryor Number Marking Head when marking serialization numbers, with a Flymark to mark custom designed inscriptions or logos, and for use with Pryor Interchangeable Steel Type and Machine Holder when marking either a fixed inscription or a completely changeable inscription.
Pryor Percussion Impact Presses Features :

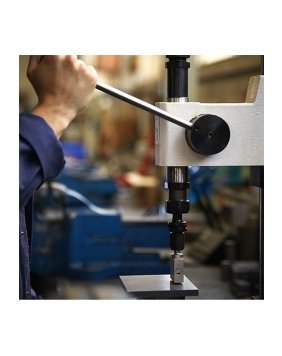

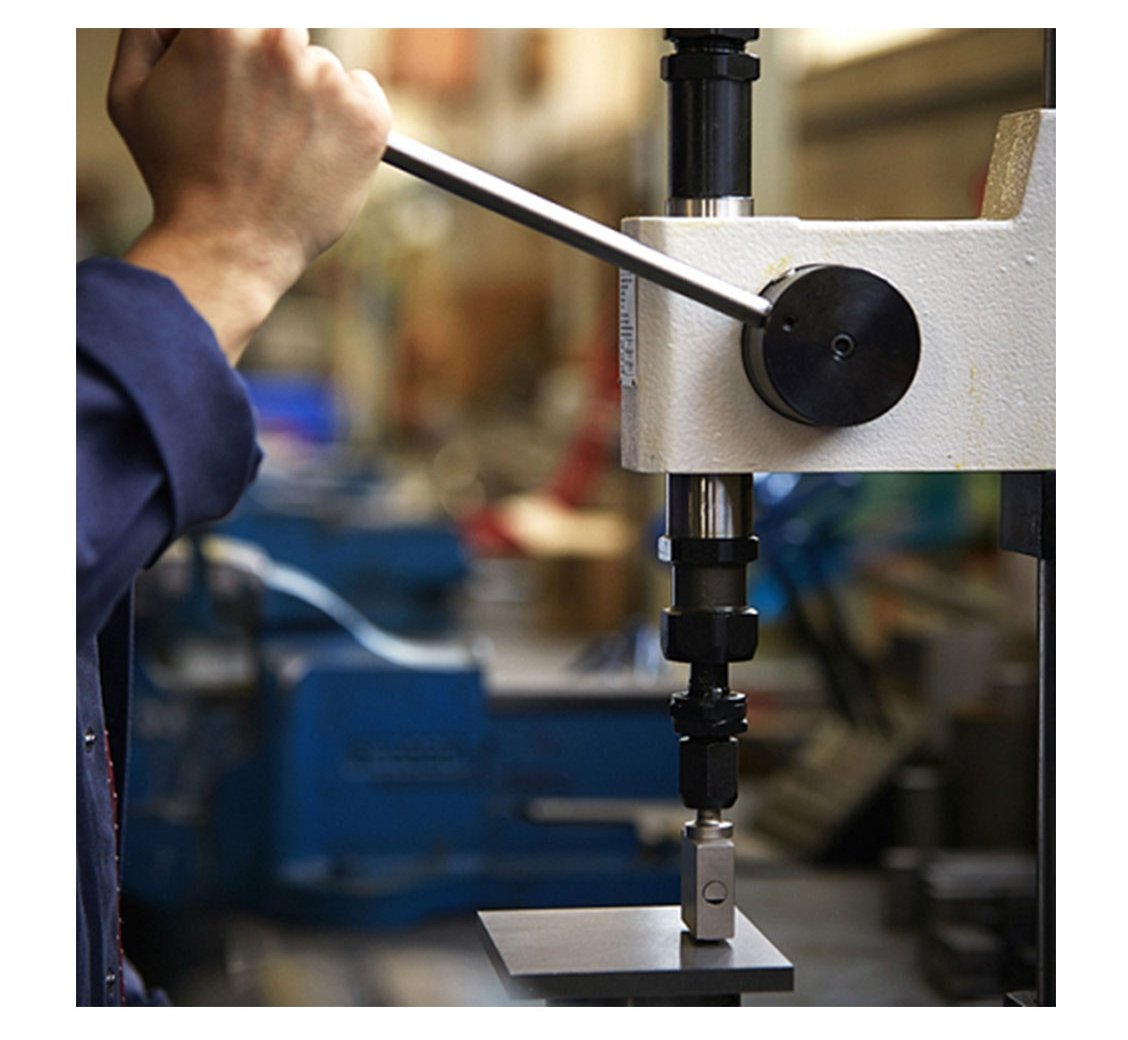

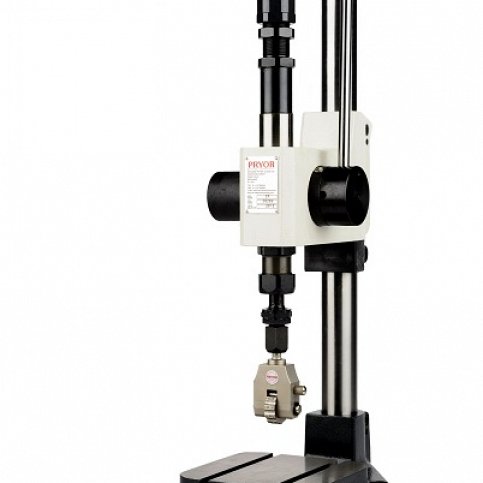

Bench-mounted Hand-operated Press:
|
Marking capacity |
0 – 600Kg |
0 – 3000 Kg |
0 – 6000Kg |
|
Press Dimensions |
|||
|
Base Area |
132 x 210 mm |
205 x 309 mm |
280 x 443 mm |
|
Overall Height |
450 mm |
650mm |
850 mm |
|
Daylight |
260 mm |
430mm |
390 mm |
|
Weight |
10 Kgs |
33 Kgs |
99Kgs |
|
Marking Table |
|||
|
Area |
100 x 100 mm |
160 x 160mm |
220 x 220 mm |
|
T-shaped slot |
6mm |
8mm |
12mm |
|
Marking Stroke |
|||
|
Rack stroke length |
30mm |
60mm |
100 mm |
|
Tool support stroke length |
8mm |
18mm |
22 mm |
|
Usable stroke length |
22mm |
42mm |
78 mm |
|
Machine Shank |
Round Shank |
Round Shank |
Round Shank |

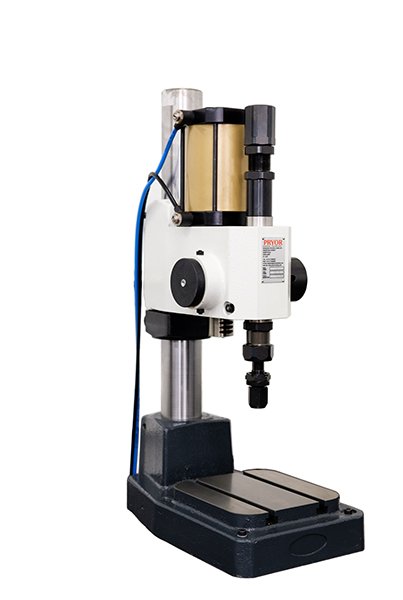

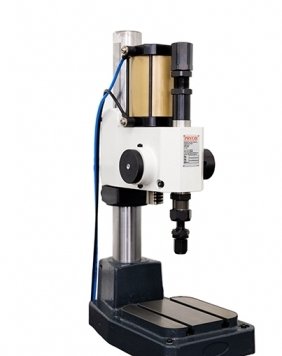

Bench-mounted Pneumatic Press:
|
Marking capacity |
0 – 600Kg |
0 – 3500 Kg |
0 – 7500Kg |
|
Press Dimensions |
|||
|
Base Area |
138 x 225 mm |
208 x 355 mm |
300 x 505 mm |
|
Overall Height |
350 mm |
600 mm |
800 mm |
|
Daylight Adjustment |
0 - 175 mm |
0 - 270 mm |
0 - 300 mm |
|
Weight |
14.5 Kgs |
53 Kgs |
162Kgs |
|
Marking Table |
|||
|
Area |
110 x 110 mm |
166 x 176 mm |
240 x 240 mm |
|
T-shaped slot |
6mm |
10mm |
12mm |
|
Marking Stroke |
|||
|
Rack stroke length |
30mm |
60mm |
85 mm |
|
Tool support stroke length |
8mm |
18mm |
22 mm |
|
Usable stroke length |
22mm |
42mm |
63 mm |
|
Machine Shank |
Round Shank |
Round Shank |
Round Shank |
|
Air Pressure |
4 bar |
6 bar |
6 bar |
|
Air Connection |
1/4" B.S.P. |
1/4" B.S.P. |
1/4" B.S.P. |
Integrator Press:
|
Marking Capacity |
0 – 600Kg |
0 – 3000 Kg |
0 – 6000Kg |
|
Weight |
2Kg |
10Kg |
38Kg |
|
Air Pressure |
4 bars |
6 bars |
6 bars |
|
Air Consumption |
0.5L |
2.3L |
5.4L |
|
Shank |
8mm dia. x 32mm |
10mm dia. x 40mm |
16mm dia. x 50mm |
|
Rack Stroke Length |
32mm |
67mm |
110mm |
|
Tool Support Stroke Length |
8mm |
18mm |
25mm |
|
Usable Stroke length |
24mm |
49mm |
85mm |
