SISMA SART Diode and fiber Ytterbium system with rotating table

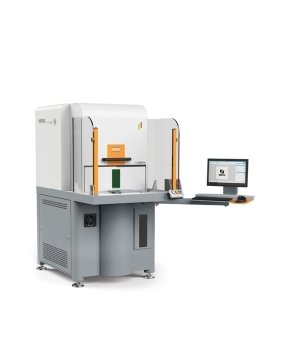

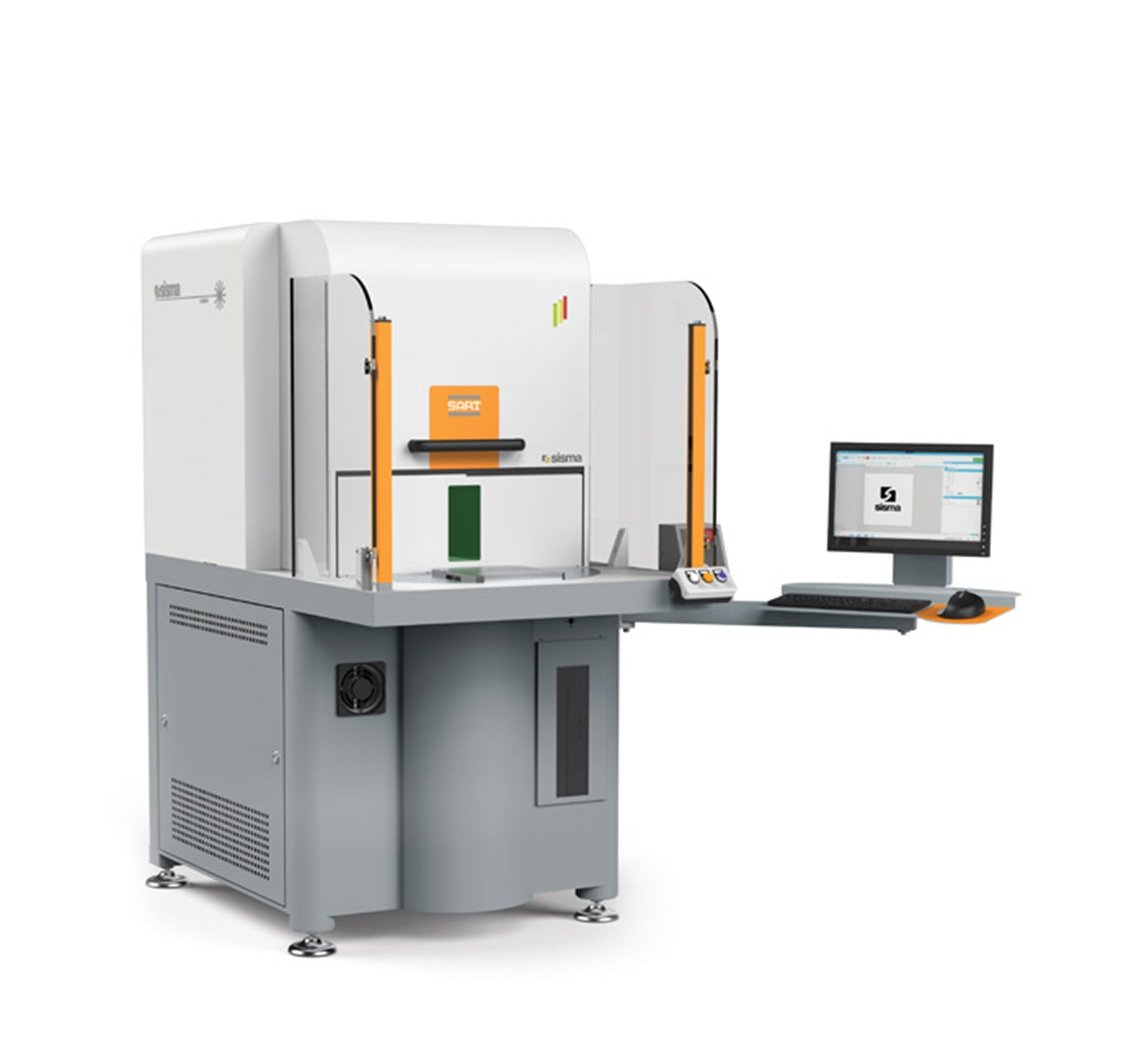

SART, laser marking and engraving system with rotating table, on base

Highly productive
The two-position rotating table system (diameter 700 mm) allows to load/unload the pieces during the marking process, minimizing downtimes. Furthermore, the sturdy structure guarantees repeatability and stability of results over time.

Functional
The ergonomic structure enables a comfortable operator position while the integrated software, developed by SISMA, allows to carry out very complex operations in an easy and intuitive way.

Flexible
SART is available with wide range of SISMA laser sources (from 3 W to 50 W) and can be fitted, on request, with a rotating axis. It is also compatible with the coaxial vision system (CVS), the Pattern Matching software and the Focus Shifter scanning head for 3D surface marking.

Description 200F 200F EP 300F 400F 500F GREEN UV
Laser source Yb Yb Yb Yb Yb Nd:YVO4 Nd:YVO4
Wavelength 1064 nm 1064 nm 1064 nm 1064 nm 1064 nm 532 nm 355 nm
Average laser power 20 W 20 W 30 W 40 W 50 W 10 W 3 W
Pulse frequency 1÷500 Khz 1÷1000 Khz 1÷500 Khz 1÷1000 Khz 1÷500 Khz 1÷300 Khz 1÷300 Khz
Pulse duration 260/40 ns 3-500 ns 260/40 ns 260/40 ns 10-240 ns 30 ns 30 ns
Max pulse energy 1/0,21 mJ 0,03-1 mJ 1/0,21 mJ 1/0,21 mJ 0,16-0,33 mJ 0,25 mJ 0,25 mJ
Beam quality (M²) ≤ 1,6 ≤ 1,6 ≤ 1,6 ≤ 1,6 ≤ 1,6 ≤ 1,2 ≤ 1,2
Laser spot diameter (F160) 20 μm 20 μm 20 μm 40 μm 20 μm 12 μm 12 μm
Max marking speed 2000 mm/s
Laser guide Class 2M Red Laser Diode; λ=650 nm; 2 mW
Max piece weight 15 kg
Max working area 300 mm x 300 mm x 250 mm
Power supply 950 mm (1900 mm with monitor support) x 1570 mm x 1830 mm (2400 mm with open door)
Dimensions (WxDxH) 230 V ± 15% 50/60 Hz 1ph CEE 16A plug
Weight 600 kg
