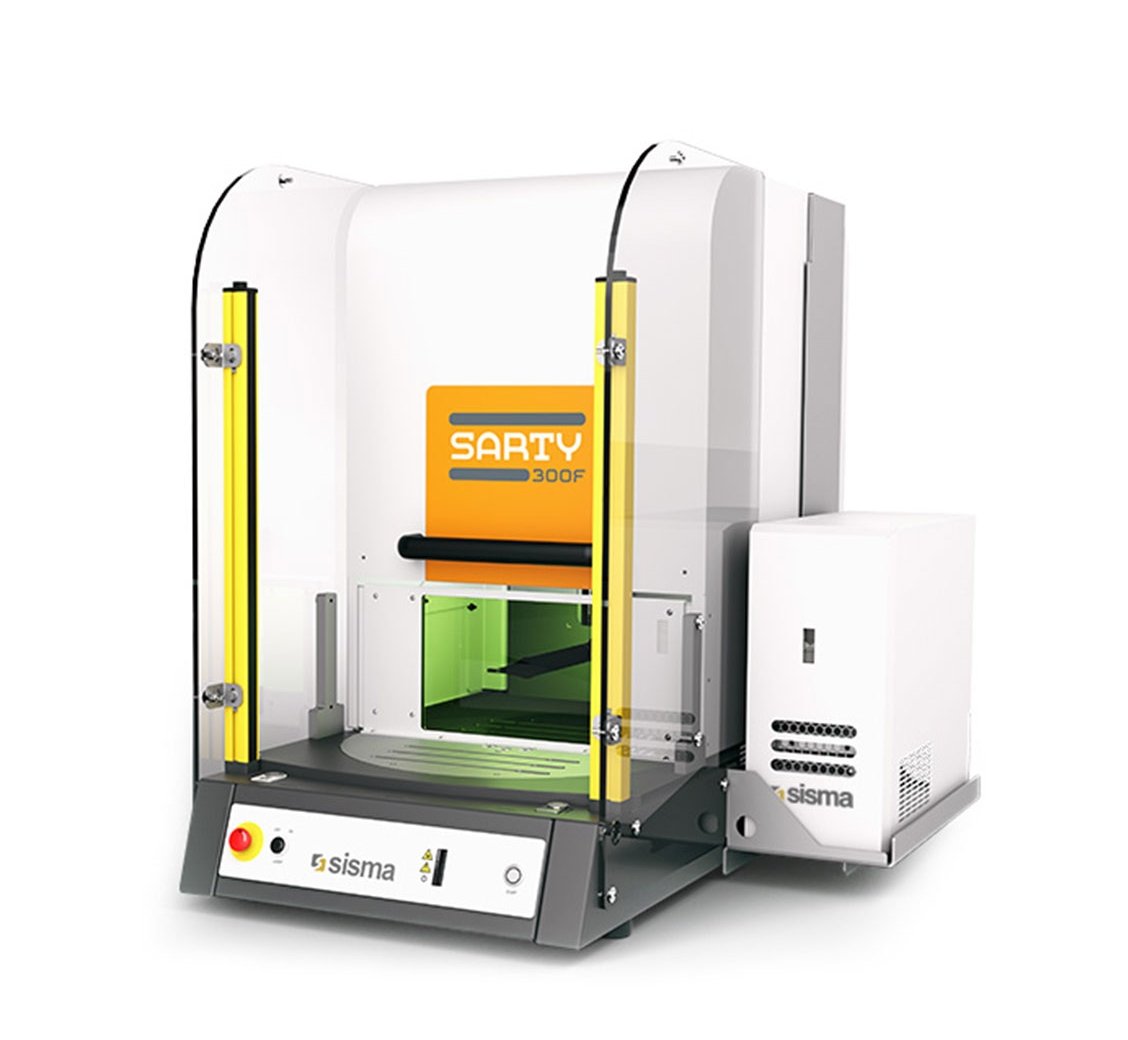

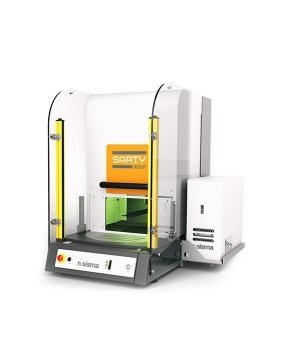

SISMA SARTY Diode and fiber Ytterbium system with rotating table
SARTY, desktop laser marking and engraving system.
Versatile
SARTY is a small-sized desktop laser marking and engraving system with a solid and durable structure. It can be quickly adapted to process different objects by simply replacing the template.
Highly productive
The loading/unloading option during the processing, with the consequent elimination of downtimes, make SARTY ideal for marking numerous pieces of a single batch.
Functional
SARTY is compatible with the coaxial vision system (CVS) for automatic piece recognition and is equipped with a powerful, flexible software that can be connected to the company database.
| Model | 100 | 200F | 200F EP | 300F | 400F | 500F | |||
| Laser source | Nd:YAG | Yb | Yb | Yb | Yb | Yb | |||
| Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm | |||
| Average laser power | 10 W | 20 W | 20 W | 30 W | 40 W | 50 W | |||
| Pulse frequency | 1÷500 kHz | 1÷500 kHz | 1÷1000 kHz | 1÷500 kHz | 1÷1000 kHz | 1÷500 kHz | |||
| Pulse duration | 260/40 ns | 260/40 ns | 3-500 ns | 260/40 ns | 10-240 ns | 250/40 ns | |||
| Max pulse energy | 1/0,21 mJ | 1/0,21 mJ | 0,03/1 mJ | 1/0,21 mJ | 0,16/1,33 mJ | 1/0,21 mJ | |||
| Beam quality | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | |||
| Laser spot diameter | 20 μm | 20 μm | 20 μm | 20 μm | 40 μm | 20 μm | |||
| Max marking speed | 2000 mm/s | ||||||||
| Focal lenses | F100, F160 (standard), F254, F330 | ||||||||
| 4th axes | Optional | ||||||||
| Laser guide | Class 2M Red Laser Diode; λ=650 nm; 2 mW | ||||||||
| Working temperature | 10°C to 35°C - non condensing | ||||||||
| Cooling system | Forced-air cooling | ||||||||
| Table diameter | Ø 580 mm | ||||||||
| Power supply | 230 V ± 15% 50/60 Hz 1ph 0,8 kW | ||||||||
| Dimensions (WxDxH) | 796 x 1148 x 954 mm | ||||||||
| Weight | 150 kg | ||||||||
