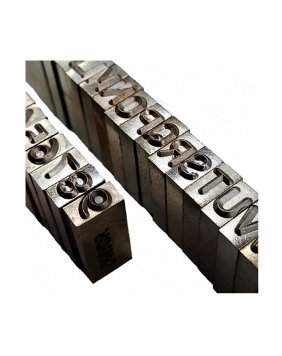

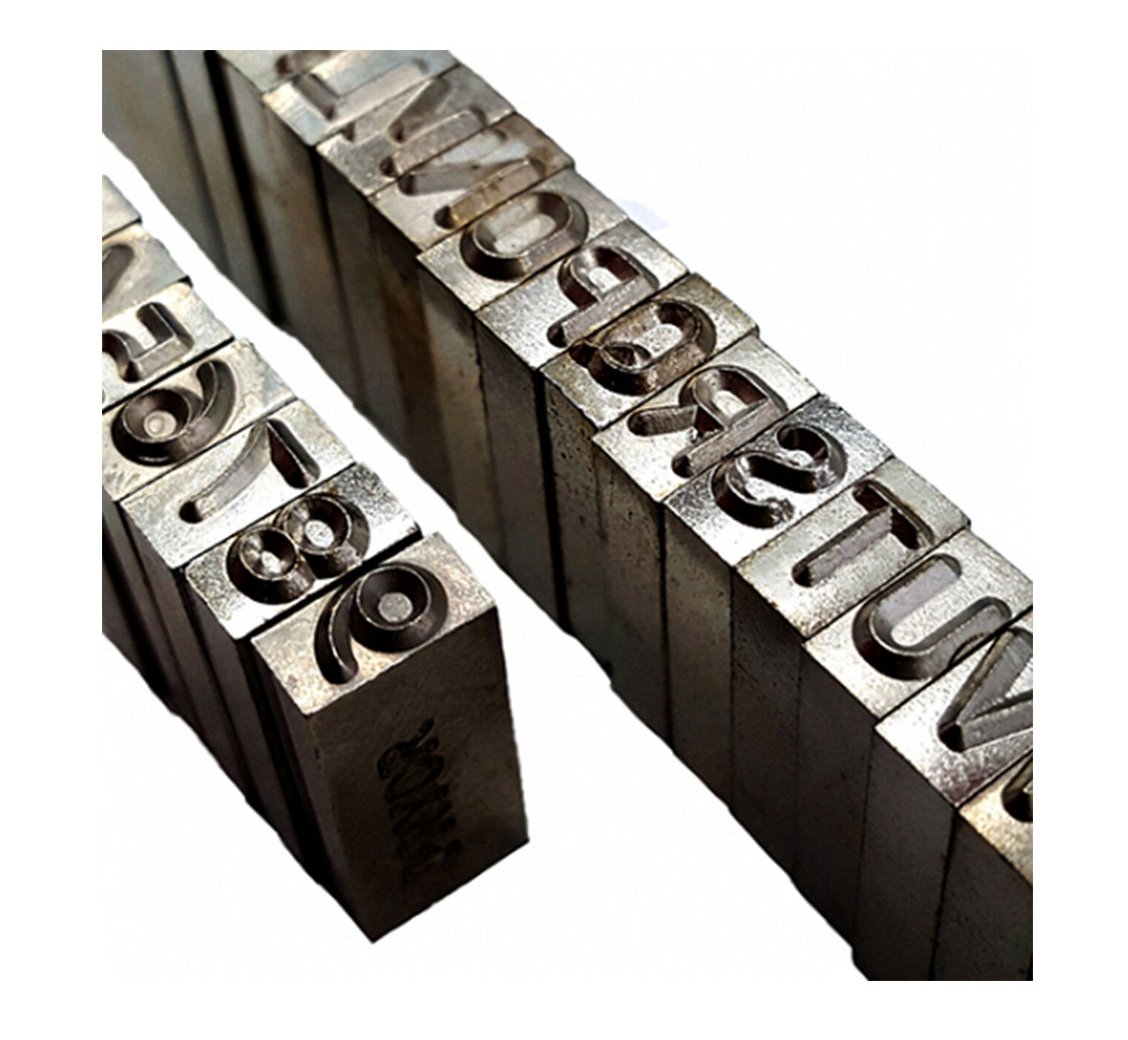

PRYOR Steel Type Letter & Figure Sets .

Steel Type Letter & Figure Sets interchangeable and compatible with common world-wide blank sizes & Type Holders. Sharp Faced engraving style to produce clear positive impressions.

Pryor Steel Type Letter & Figure Sets Features :

  • Making a mark with Steel Type Sets saves time - simply build an inscription into the slot in the Holder and in just one stroke, a series of letters and figures can be indented with uniform legibility.
  • Steel Type with uniformity of blank size, character position, and depth from one piece to another allows a straight, consistent quality mark to be made on a range of materials including metal and plastic up to a maximum hardness of 37 Rockwell C
  • A comprehensive range of Holders to work with Steel Type are also available with a variety of slot sizes to give a choice of inscription length and hand or machine application.
  • Packs of individual characters to compliment the sets are also available to purchase should you need more of a specific character.
  • Also available are Number Marking Kits for Date, Batch and Serial Numbering.
  • Manufactured under stringent BS EN ISO 9001:2008 quality controls and exacting standards.

Pryor Steel Type Letter & Figure Sets 3 set options to choose from :

  • Set of 26 characters A-Z
  • Set of 10 characters 0-9
  • Set of 100 alpha-numeric and punctuation characters according to the most common use plus spacer pieces for non-marking positions.

Should you need assistance to identify the size required please refer to the Type Identification Chart in Technical Data.



TYPE IDENTIFICATION CHART, to be used in connection with the Type Diagram in the images ribbon.

Match your A, B and C blank dimensions to identify Steel Type Brand and size.

Character Height - measured from the crest of the engraving as shown.

PRYOR TYPE

(H) Character Height (C) Blank Length (B) North/South (A) East/West
mm inch mm inch mm inch mm inch
1.0mm .040" 15.87mm 5/8" 3.20mm 1/8" 1.60mm 1/16"
1.50mm 1/16" 15.87mm 5/8" 3.20mm 1/8" 1.60mm 1/16"
2.00mm 5/64" 19.05mm 3/4" 6.40mm 1/4" 2.00mm 5/64"
2.50mm 3/32" 19.05mm 3/4" 6.40mm 1/4" 2.50mm 3/32"
3.00mm 1/8" 19.05mm 3/4" 6.40mm 1/4" 3.20mm 1/8"
4.00mm 5/32" 19.05mm 3/4" 8.00mm 5/16" 4.00mm 5/32"
5.00mm 3/16" 19.05mm 3/4" 8.00mm 5/16" 4.80mm 3/16"
6.00mm 1/4" 19.05mm 3/4" 9.50mm 3/8" 6.40mm 1/4"
10.00mm 3/8" 25.40mm 1" 16.00mm 5/8" 9.50mm 3/8"

IMPERIAL TYPE

(H) Character Height (C) Blank Length (B) North/South (A) East West
mm inch mm inch mm inch mm inch
1.00mm .040" 22.20mm 7/8" 6.40mm 1/4" 1.60mm 1/16"
1.50mm 1/16" 22.20mm 7/8" 6.40mm 1/4" 1.60mm 1/16"
2.00mm 5/64" 22.20mm 7/8" 6.40mm 1/4" 2.00mm 5/64"
2.50mm 3/32" 22.20mm 7/8" 6.40mm 1/4" 2.50mm 3/32"
3.00mm 1/8" 22.20mm 7/8" 6.40mm 1/4" 3.20mm 1/8"
4.00mm 5/32" 22.20mm 7/8" 6.40mm 1/4" 4.00mm 5/32"
5.00mm 3/16" 22.20mm 7/8" 6.40mm 1/4" 4.80mm 3/16"

EURO TYPE

(H) Character Height (C) Blank Length (B) North/South (A) East/West
1.00mm .040" 19.00mm 3/4" 4.00mm 5/32" 1.50mm 1/16"
1.50mm 1/16" 19.00mm 3/4" 4.00mm 5/32" 1.50mm 1/16"
2.00mm 5/64" 19.00mm 3/4" 4.00mm 5/32" 2.00mm 5/64"
2.50mm 3/32" 19.00mm 3/4" 6.00mm 1/4" 2.50mm 3/32"
3.00mm 1/8" 19.00mm 3/4" 6.00mm 1/4" 3.00mm 1/8"
4.00mm 5/32" 19.00mm 3/4" 8.00mm 5/16" 4.00mm 5/32"
5.00mm 3/16" 19.00mm 3/4" 8.00mm 5/16" 5.00mm 3/16"
