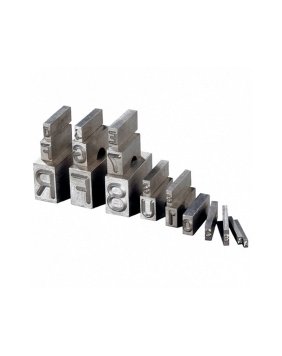

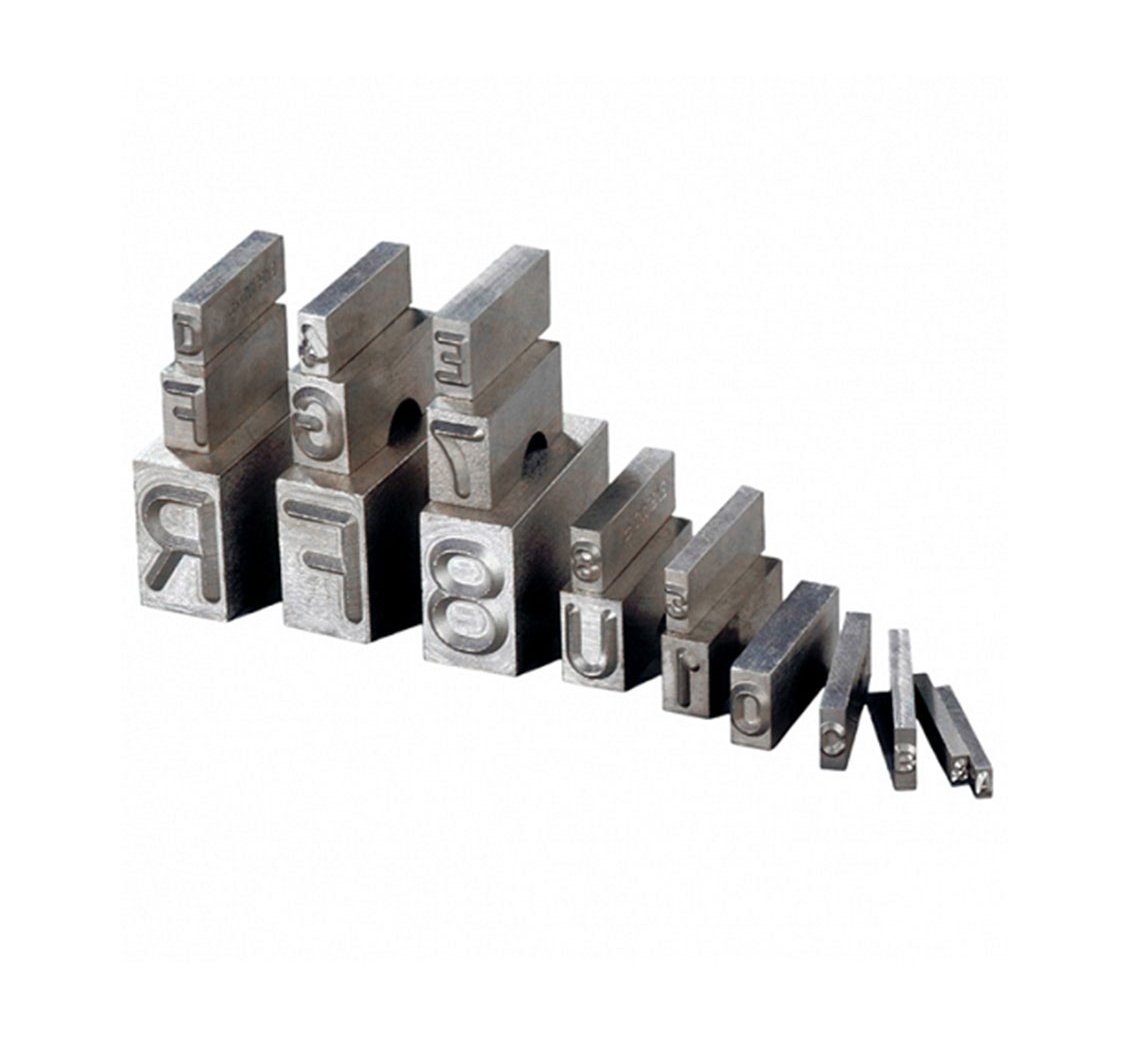

PRYOR Steel Type Single Character Packs .

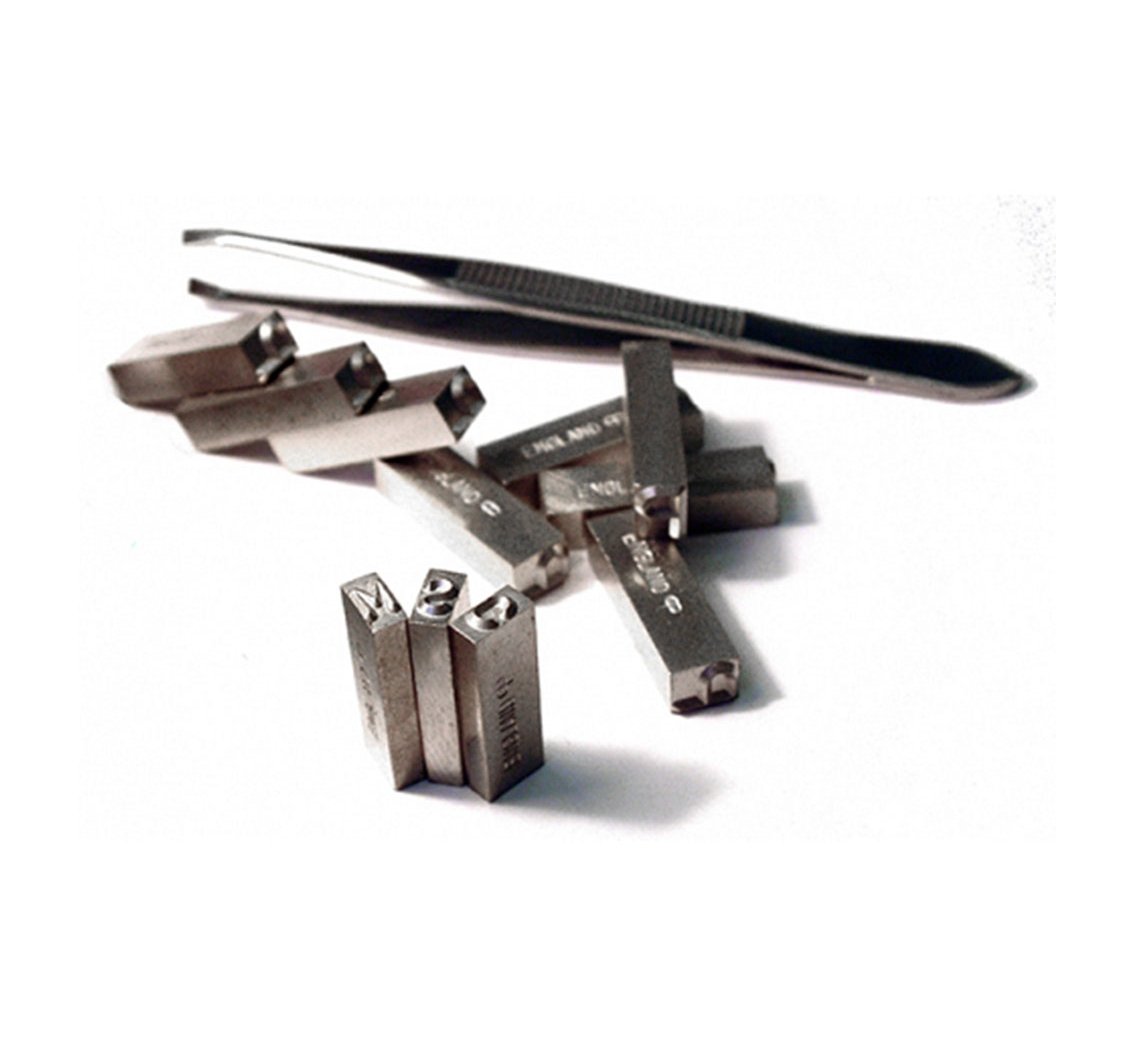

Replacement or additional Steel Type pieces, interchangeable and compatible with common world-wide blank sizes & Type Holders. Sharp Faced engraving style to produce clear positive impressions. Single characters available in packs of 5 pieces (same character) and 10 pieces (same character).
Pryor Steel Type Single Character Packs Features :

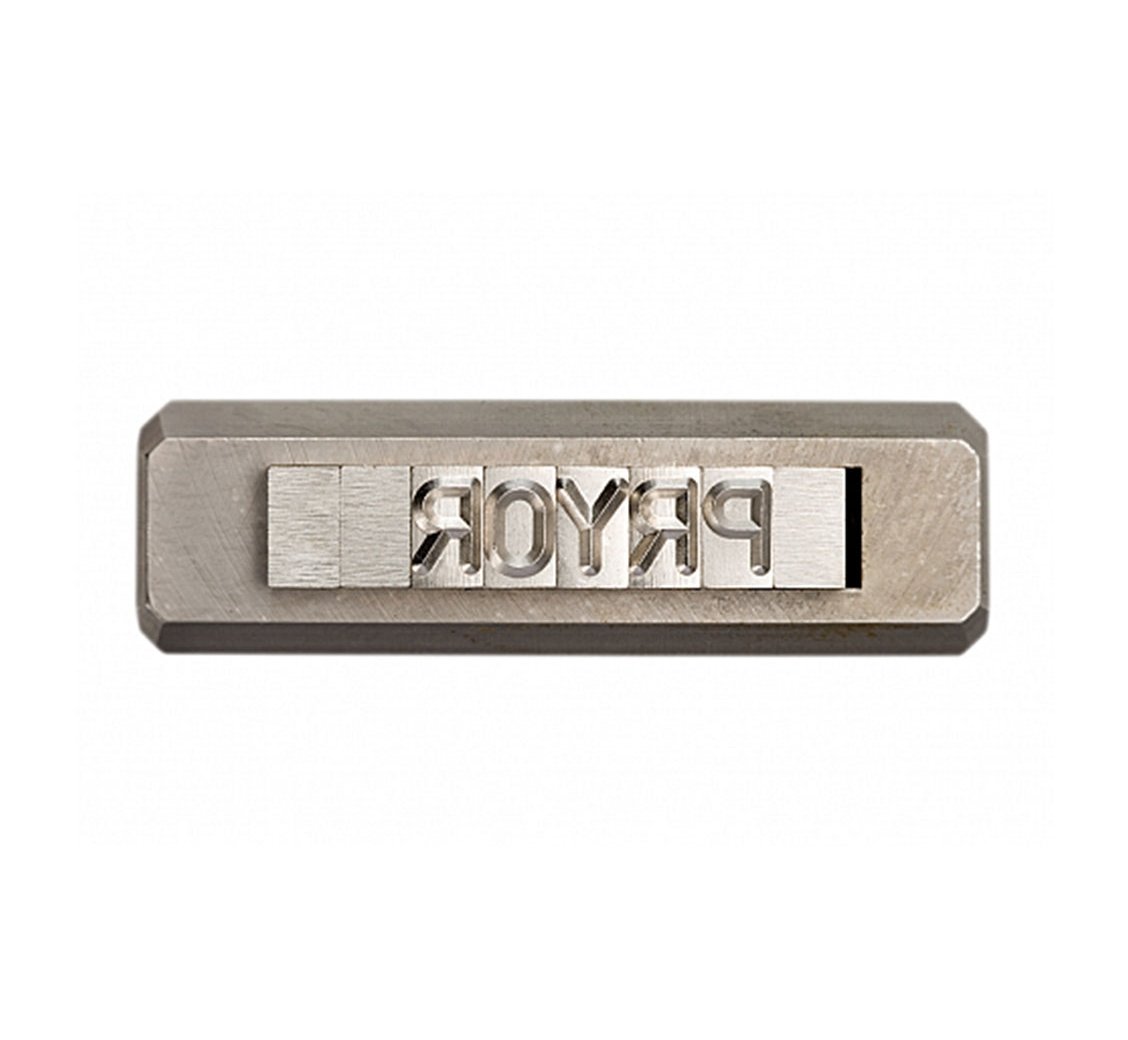

- Making a mark with Steel Type Sets saves time - simply build an inscription into the slot in the Holder and in just one stroke, a series of letters and figures can be indented with uniform legibility.
- Steel Type with uniformity of blank size, character position, and depth from one piece to another allows a straight, consistent quality mark to be made on a range of materials including metal and plastic up to a maximum hardness of 37 Rockwell C
- A comprehensive range of Holders to work with Steel Type are also available with a variety of slot sizes to give a choice of inscription length and hand or machine application.
- Sets of Letters & Figures are also available should you need a variety of characters for your marking needs.
- Manufactured under stringent BS EN ISO 9001:2008 quality controls and exacting standards.
TYPE IDENTIFICATION CHART, to be used in connection with the Type Diagram in the images ribbon.
Match your A, B and C blank dimensions to identify Steel Type Brand and size.
Character Height - measured from the crest of the engraving as shown.
PRYOR TYPE
| (H) Character Height | (C) Blank Length | (B) North/South | (A) East/West | ||||
| mm | inch | mm | inch | mm | inch | mm | inch |
| 1.0mm | .040" | 15.87mm | 5/8" | 3.20mm | 1/8" | 1.60mm | 1/16" |
| 1.50mm | 1/16" | 15.87mm | 5/8" | 3.20mm | 1/8" | 1.60mm | 1/16" |
| 2.00mm | 5/64" | 19.05mm | 3/4" | 6.40mm | 1/4" | 2.00mm | 5/64" |
| 2.50mm | 3/32" | 19.05mm | 3/4" | 6.40mm | 1/4" | 2.50mm | 3/32" |
| 3.00mm | 1/8" | 19.05mm | 3/4" | 6.40mm | 1/4" | 3.20mm | 1/8" |
| 4.00mm | 5/32" | 19.05mm | 3/4" | 8.00mm | 5/16" | 4.00mm | 5/32" |
| 5.00mm | 3/16" | 19.05mm | 3/4" | 8.00mm | 5/16" | 4.80mm | 3/16" |
| 6.00mm | 1/4" | 19.05mm | 3/4" | 9.50mm | 3/8" | 6.40mm | 1/4" |
| 10.00mm | 3/8" | 25.40mm | 1" | 16.00mm | 5/8" | 9.50mm | 3/8" |
IMPERIAL TYPE
| (H) Character Height | (C) Blank Length | (B) North/South | (A) East West | ||||
| mm | inch | mm | inch | mm | inch | mm | inch |
| 1.00mm | .040" | 22.20mm | 7/8" | 6.40mm | 1/4" | 1.60mm | 1/16" |
| 1.50mm | 1/16" | 22.20mm | 7/8" | 6.40mm | 1/4" | 1.60mm | 1/16" |
| 2.00mm | 5/64" | 22.20mm | 7/8" | 6.40mm | 1/4" | 2.00mm | 5/64" |
| 2.50mm | 3/32" | 22.20mm | 7/8" | 6.40mm | 1/4" | 2.50mm | 3/32" |
| 3.00mm | 1/8" | 22.20mm | 7/8" | 6.40mm | 1/4" | 3.20mm | 1/8" |
| 4.00mm | 5/32" | 22.20mm | 7/8" | 6.40mm | 1/4" | 4.00mm | 5/32" |
| 5.00mm | 3/16" | 22.20mm | 7/8" | 6.40mm | 1/4" | 4.80mm | 3/16" |
EURO TYPE
| (H) Character Height | (C) Blank Length | (B) North/South | (A) East/West | ||||
| 1.00mm | .040" | 19.00mm | 3/4" | 4.00mm | 5/32" | 1.50mm | 1/16" |
| 1.50mm | 1/16" | 19.00mm | 3/4" | 4.00mm | 5/32" | 1.50mm | 1/16" |
| 2.00mm | 5/64" | 19.00mm | 3/4" | 4.00mm | 5/32" | 2.00mm | 5/64" |
| 2.50mm | 3/32" | 19.00mm | 3/4" | 6.00mm | 1/4" | 2.50mm | 3/32" |
| 3.00mm | 1/8" | 19.00mm | 3/4" | 6.00mm | 1/4" | 3.00mm | 1/8" |
| 4.00mm | 5/32" | 19.00mm | 3/4" | 8.00mm | 5/16" | 4.00mm | 5/32" |
| 5.00mm | 3/16" | 19.00mm | 3/4" | 8.00mm | 5/16" | 5.00mm | 3/16" |
