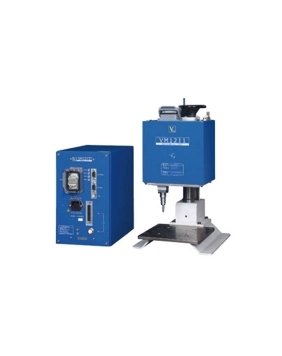

VECTOR VM1210 Air Pen Marking Machine
Vector marking machines are dedicated for the dot peen marking – a method to write characters and 2D-codes consists of dimples on workpieces by pressing the vibrating stylus tip directly. Air pen marking machine vibrates the stylus tip by pneumatic pressure. As a company which specializes marking machine development, design, sales and service, Vector’s various products and services will surely meet with any customers’ needs.
Vector VM1210 Air Pen Marking Machine delivers semi-permanent marking on wide range of metals, including steel, stainless steel, and aluminum, as well as plastics and other nonmetallic materials. It is designed to handle marking needs for production management, quality assurance, product-liability countermeasures, ISO measures, distribution management, and more.
Vector VM1210 Features:
- Smooth line & sharp dot marking

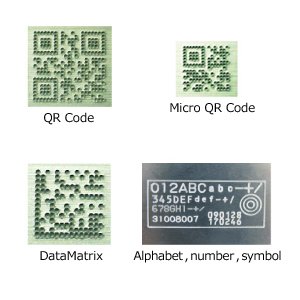

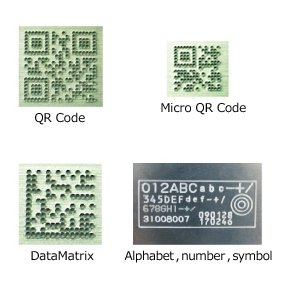

- 2D code marking (DataMatrix / QR Code / Micro QR Code)

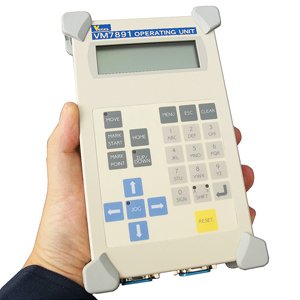

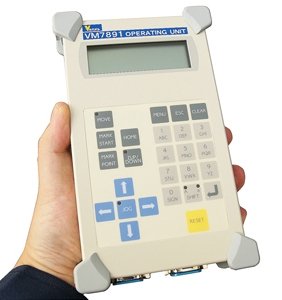

- User-friendly front panel
- High reliability and maintainability
- USB interface
- Compact and easy to install
| Pen type | Air pen |
|---|---|
| Marking range | 80×30mm |
| Pen stroke | Approx. 9mm (Z-axis marking range: 5mm) |
| Workpiece material | Steel, aluminum, copper and their alloys, stainless steel, hard plastic, etc. (depends on the type of stylus) |
| Available characters | Alphabet (uppercase/lowercase), number, symbol (18 types) |
| Character size | 1~30mm (in increments of 0.1mm) |
| Font | 3 types |
| Character orientation | 8 directions |
| Number of jobs | 255 jobs (J1~J255) |
| Number of sequences | 255 sequences (S1~S255) |
| String length | 1~36 characters (varied by character size) |
| Marking function | Increment: 1~10 digits Calendar: Year. Month. Day. Hour. Minute. Second Circular arc marking: Available Special character: Supported (16 types) 2D code: DataMatrix, QR Code, Micro QR Code |
| Interface | I/O(Parallel): 50pin, NPN/PNP connect RS-232C (Serial): 9pin USB (for operation by PC): USB 2.0 Standard-B |
| Power supply | Single-phase AC100V~230V 50 / 60 Hz, Approx. 200VA |
| Air supply | 0.3~0.5MPa, 40 L / min (A.N.R.) Dry clean air (below atmospheric dew point -17℃) |
| Environmental condition | Operating temperature: 0~40 ℃ Storage temperature : -5 ~ +50 ℃ Relative humidity: 90%RH or less (no condensation) |
| Dimensions (W×H×D) | Mechanical Unit: 204×213×153mm Control Unit: 180×294×269mm |
| Weight | Mechanical Unit: Approx. 7.5kg Control Unit: Approx. 4.6kg |
