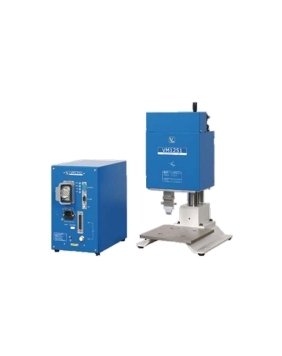

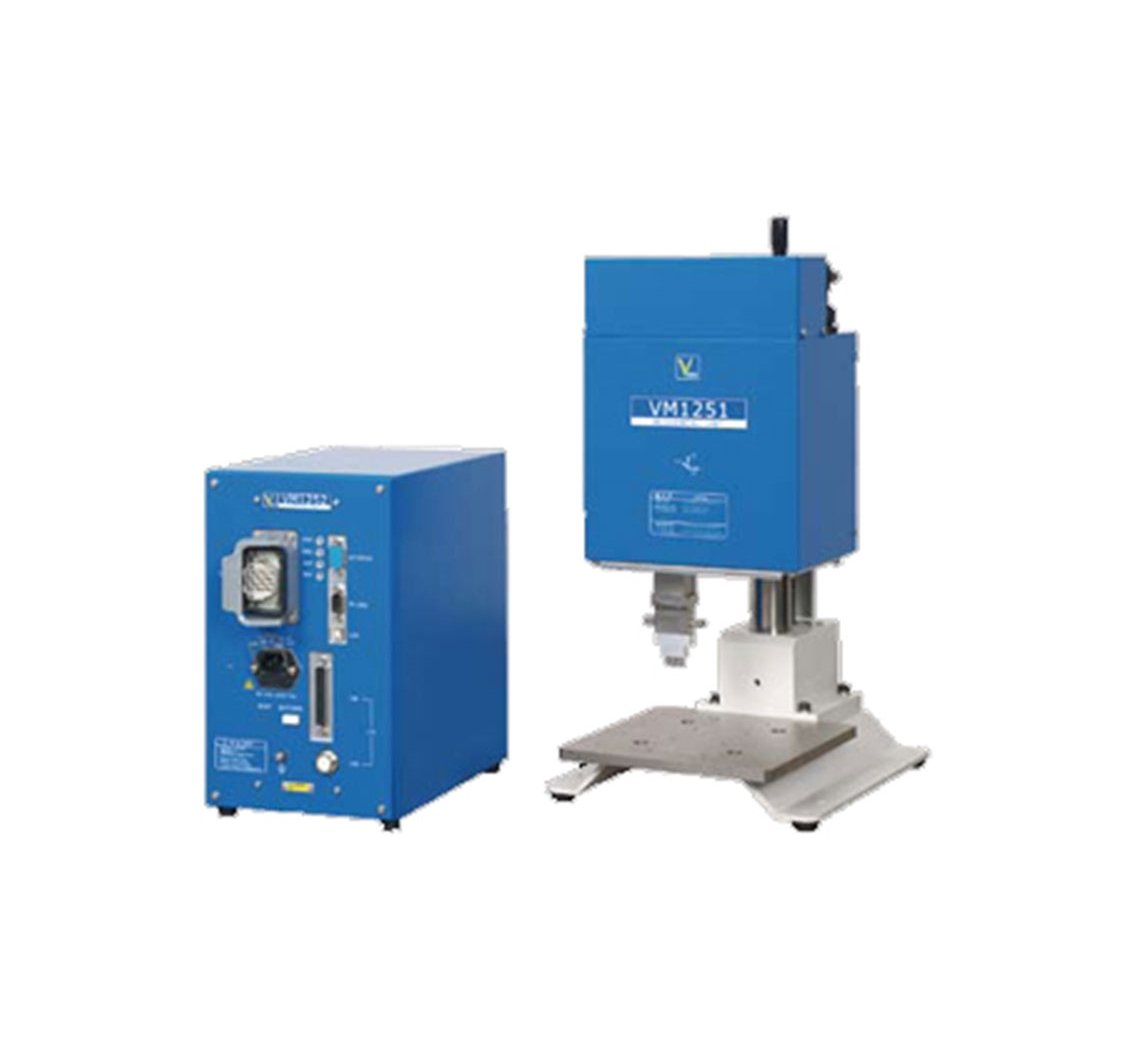

VECTOR VM1250 Multi-stylus Pen Marking Machine
Vector marking machines are dedicated for the dot peen marking – a method to write characters and 2D-codes consists of dimples on workpieces by pressing the vibrating stylus tip directly. Air pen marking machine vibrates the stylus tip by pneumatic pressure. As a company which specializes in marking machine development, design, sales and service, Vector’s various products and services will surely meet with any customers’ needs.
Vector VM1250 Multi-stylus Pen Marking Machine delivers semi-permanent marking on a wide range of metals, including steel, stainless steel, and aluminum, as well as plastics and other nonmetallic materials. It is designed to handle marking needs for production management, quality assurance, product-liability countermeasures, ISO measures, distribution management, and more.
Vector VM1250 Multi-stylus Pen Marking Machine Features:

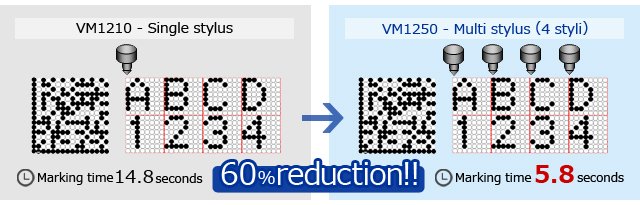

- High-speed marking (dot character and 2D code)
- Gives vibration priority to unworn styli

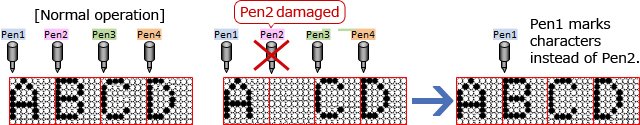

- Works though some styl damaged
- High reliability and maintainability
- Various options and extensions
| Pen type | Multi-stylus pen (4 styli in a row) |
|---|---|
| Marking range | 80×30 mm |
| Pen stroke | Approx. 13mm (Z-axis marking range: 7mm) |
| Workpiece material | Steel, aluminum, copper and their alloys, stainless steel, hard plastic, etc. (depends on the type of stylus) |
| Available characters | Alphabet (uppercase/lowercase), number, symbol (18 types) |
| Character size | 4.34mm (MU0005-001 Multi-stylus Pen) 3.50mm (MU0004-001 Multi-stylus Pen) |
| Font | 1 type |
| Character orientation | 2 directions |
| Number of jobs | 255 jobs (J1~J255) |
| Number of sequences | 255 sequences (S1~S255) |
| String length | 1~36 characters (varied by character size) |
| Marking function | Increment: 1~10 digits Calendar: Year. Month. Day. Hour. Minute. Second Circular arc marking: Available Special character: Supported (16 types) 2D code: DataMatrix, QR Code, Micro QR Code |
| Interface | I/O(Parallel): 50pin, NPN/PNP connect RS-232C (Serial): 9pin USB (for operation by PC): USB 2.0 Standard-B |
| Power supply | Single-phase AC100V~230V 50 / 60 Hz, Approx. 200VA |
| Air supply | 0.3~0.5MPa, 130 L / min ( A.N.R.) Dry clean air (below atmospheric dew point -17℃) |
| Environmental condition | Operating temperature: 0~40 ℃ Storage temperature: -5 ~ +50 ℃ Relative humidity: 90%RH or less (no condensation) |
| Dimensions (W×H×D) | Mechanical Unit: 204×284×153mm Control Unit: 180×294×269mm |
| Weight | Mechanical Unit: Approx. 7.4kg Control Unit: Approx. 4.6kg |
