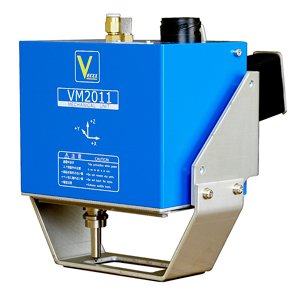

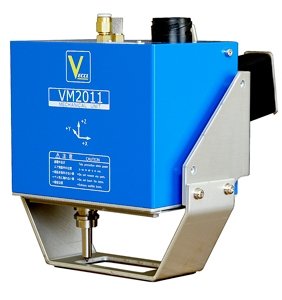

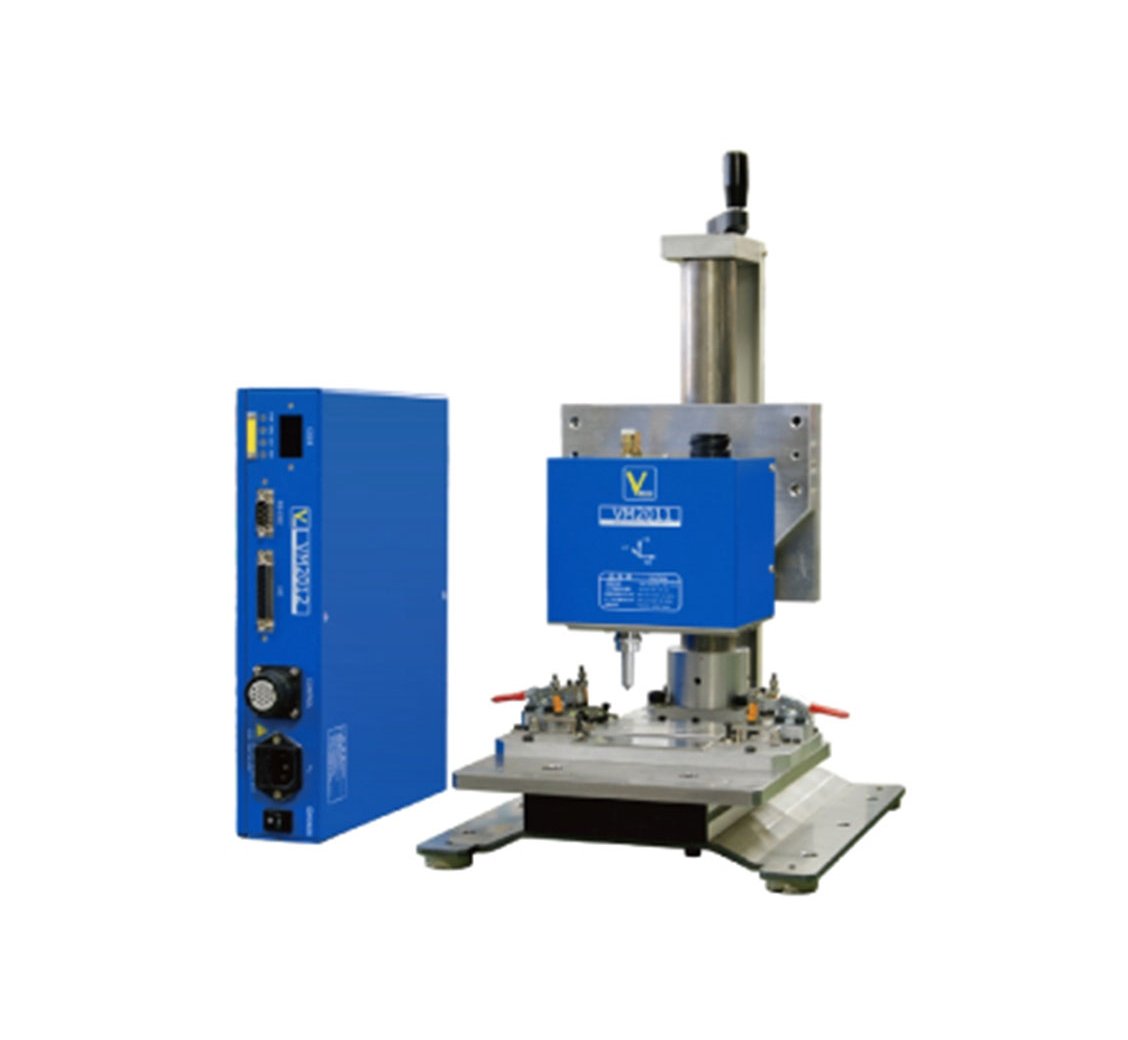

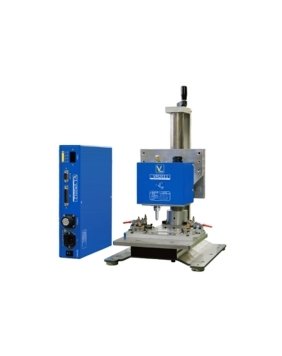

VECTOR VM2010 Air Pen Marking Machine
Vector marking machines are dedicated for the dot peen marking – a method to write characters and 2D-codes consists of dimples on workpieces by pressing the vibrating stylus tip directly. Air pen marking machine vibrates the stylus tip by pneumatic pressure. As a company which specializes in marking machine development, design, sales and service, Vector’s various products and services will surely meet any customers’ needs.
VM2010 Air Pen Marking Machine delivers semi-permanent marking on a wide range of metals, including steel, stainless steel, and aluminum, as well as plastics and other nonmetallic metals. It is designed to handle marking needs for production management, quality assurance, product-liability countermeasures, ISO measures, distribution management and more.
Vector VM2010 Air Pen Marking Machine Features :
- Compact body and wide marking range

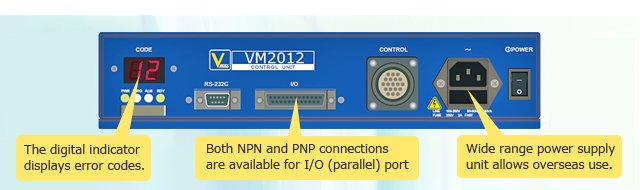

- User-friendly front panel / Horizontal and vertical layout of a control unit
| Pen type | Air pen |
|---|---|
| Marking range | 50×20 mm |
| Pen stroke | Approx. 9.5mm (Z-axis marking range: 5mm) |
| Workpiece material | Steel, aluminum, copper and their alloys, stainless steel, hard plastic, etc. (depends on the type of stylus) |
| Available characters | Alphabet (uppercase/lowercase), number, symbol (18 types) |
| Character size | 2~20mm (in increments of 0.1mm) |
| Font | 3 types |
| Character orientation | 4 directions |
| Number of jobs | 15 jobs (J1~J15) |
| String length | 1~36 characters (varied by character size) |
| Marking function | Increment: 1~10 digits Calendar: Year. Month. Day. Hour. Minute. Second Special character: Supported (16 types) |
| Interface | I/O(Parallel): 25pin, NPN/PNP connect RS-232C (Serial): 9pin |
| Power supply | Single-phase AC100V~240V 50 / 60 Hz, approx. 95 VA |
| Air supply | 0.3~0.5MPa, 40 L / min ( A.N.R.) Dry clean air (below atmospheric dew point -17℃) |
| Environmental condition | Operating temperature: 0~40 ℃ Storage temperature: -5 ~ +50 ℃ Relative humidity: 90%RH or less (no condensation) |
| Dimensions (W×H×D) | Mechanical Unit: 130×114.5×92.5mm Control Unit: 297×65×210mm |
| Weight | Mechanical Unit: Approx. 1.4Kg Control Unit: Approx. 1.9kg |
