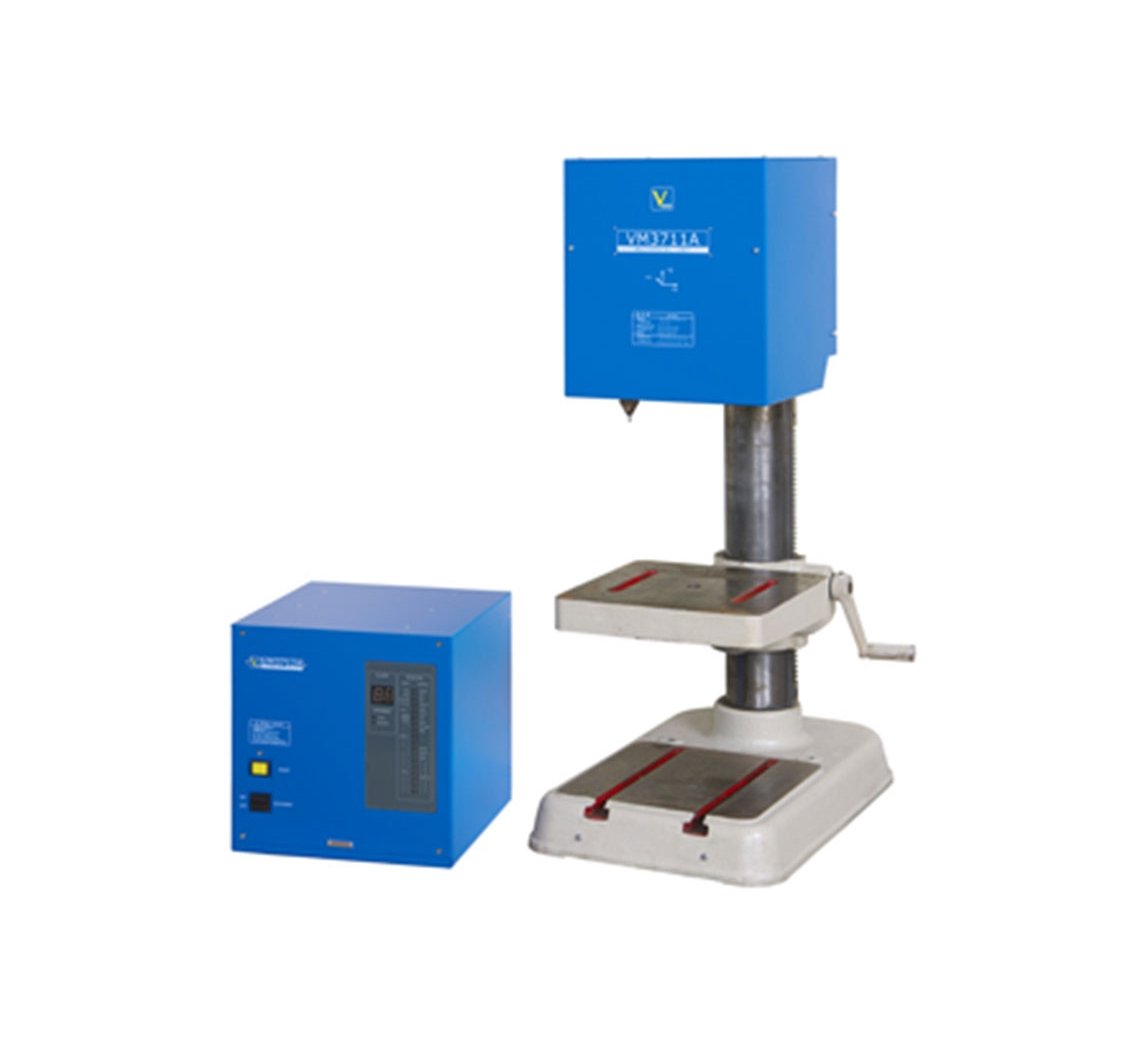

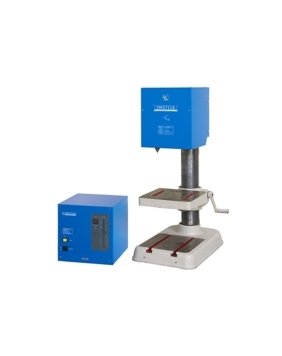

VECTOR VM3710A Air Pen Marking Machine
Vector marking machines are dedicated for the dot peen marking – a method to write characters and 2D-codes consists of dimples on workpieces by pressing the vibrating stylus tip directly. Air pen marking machine vibrates the stylus tip by pneumatic pressure. As a company which specializes in marking machine development, design, sales and service, Vector’s various products and services will surely meet any customers’ needs.
VM3710A Air Pen Marking Machine delivers semi-permanent marking on a wide range of metals, including steel, stainless steel, and aluminum, as well as plastics and other nonmetallic metals. It is designed to handle marking needs for production management, quality assurance, product-liability countermeasures, ISO measures, distribution management and more
Vector VM3710A Air Pen Marking Machine Features :
- Wide marking range (100×100mm)
- Deep marking on curved and undulating surfaces
| Pen type | Air pen |
|---|---|
| Marking range | 100×100 mm |
| Pen stroke | Approx. 19mm (Z-axis marking range: 15mm) |
| Workpiece material | Steel, aluminum, copper and their alloys, stainless steel, hard plastic, etc. (depends on the type of stylus) |
| Available characters | Alphabet (uppercase/lowercase), number, symbol (18 types) |
| Character size | 1~100mm (in increments of 0.1mm) |
| Font | 3 types |
| Character orientation | 8 directions |
| Number of jobs | 512 jobs (J1~J512) |
| Number of sequences | 512 sequences (S1~S512) |
| String length | 1~36 characters (varied by character size) |
| Marking function | Increment: 1~10 digits Calendar: Year. Month. Day. Hour. Minute. Second Circular arc marking: Available Special character: Supported (16 types) |
| Interface | I/O(Parallel): 50pin, NPN connect RS-232C (Serial): 25pin USB (for operation by PC): USB 2.0 Standard-B |
| Power supply | Single-phase AC100V~115V (-15%, +10%) 50 / 60 Hz, Approx. 550VA |
| Air supply | 0.3~0.5MPa, 60 L / min ( A.N.R.) Dry clean air (below atmospheric dew point -17℃) |
| Environmental condition | Operating temperature: 0~40 ℃ Storage temperature: -5 ~ +50 ℃ Relative humidity: 90%RH or less (no condensation) |
| Dimensions (W×H×D) | Mechanical Unit: 244×279×250.5mm Control Unit: 265×270×260mm |
| Weight | Mechanical Unit: Approx. 12kg Control Unit: Approx. 7kg |
