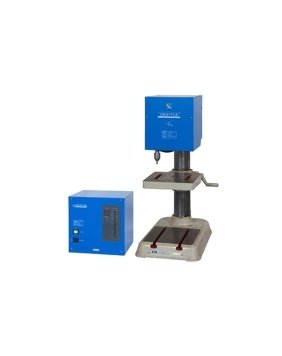

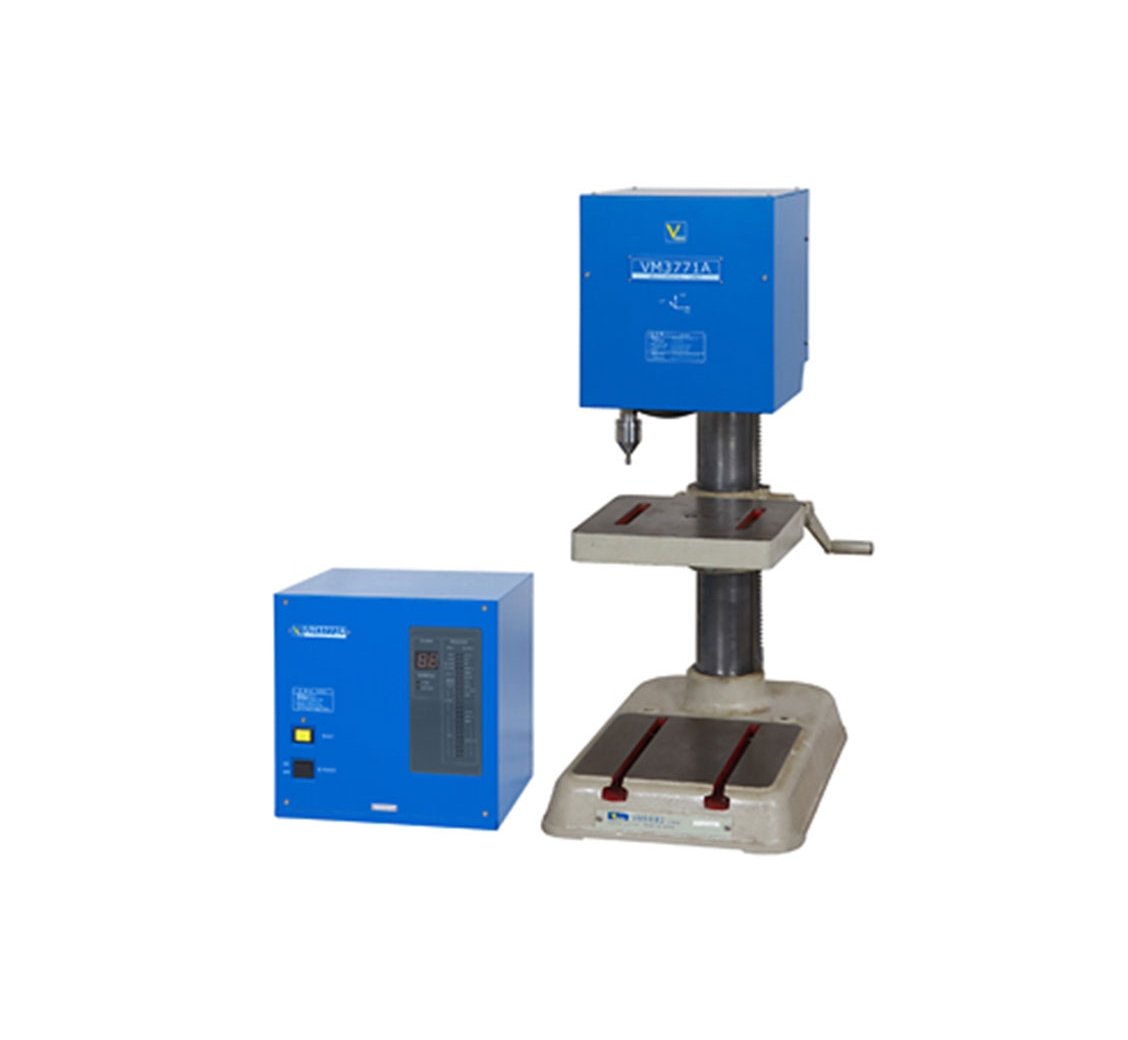

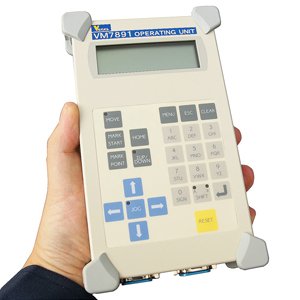

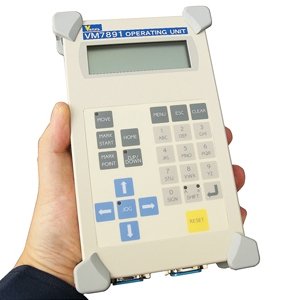

VECTOR VM3770A High-power Pen Marking Machine

Vector marking machines are dedicated for the dot peen marking – a method to write characters and 2D-codes consists of dimples on workpieces by pressing the vibrating stylus tip directly. Air pen marking machine vibrates the stylus tip by pneumatic pressure. As a company which specializes in marking machine development, design, sales and service, Vector’s various products and services will surely meet any customers’ needs.

VM3730A Ultrasonic Pen Marking Machine delivers semi-permanent marking on a wide range of metals, including steel, stainless steel, and aluminum, as well as plastics and other nonmetallic metals. It is designed to handle marking needs for production management, quality assurance, product-liability countermeasures, ISO measures, distribution management and more.

Vector VM3770A High-power Pen Marking Machine Features :

  • Wide marking range (100×100mm)

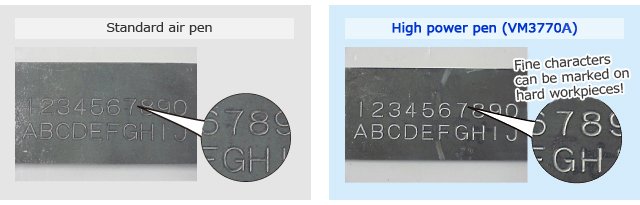

  • Deep marking by high-power pen

Pen type

Air pen (High-power pen)

Marking range

100×100 mm

Pen stroke

Approx. 8mm (Z-axis marking range: 2mm)

Workpiece material

Steel, aluminum, copper and their alloys, stainless steel, hard plastic, etc. (depends on the type of stylus)

Available characters

Alphabet (uppercase/lowercase), number, symbol (18 types)

Character size

1~100mm (in increments of 0.1mm)

Font

3 types

Character orientation

4 directions

Number of jobs

512 jobs (J1~J512)

Number of sequences

512 sequences (S1~S512)

String length

1~36 characters (varied by character size)

Marking function

Increment: 1~10 digits
Calendar: Year. Month. Day. Hour. Minute. Second
Circular arc marking: Available
Special character: Supported (16 types)

Interface

I/O(Parallel): 50pin, NPN connect
RS-232C (Serial): 25pin

Power supply

Single-phase AC100V~115V (-15%, +10%)
50 / 60 Hz, Approx. 550VA

Air supply

0.3~0.5MPa, 60 L / min ( A.N.R.)
Dry clean air (below atmospheric dew point -17℃)

Environmental condition

Operating temperature: 0~40 ℃
Storage temperature: -5 ~ +50 ℃
Relative humidity: 90%RH or less (no condensation)

Dimensions (W×H×D)

Mechanical Unit: 244×279×250.5mm
Control Unit: 265×270×260mm

Weight

Mechanical Unit: Approx. 11kg
Control Unit: Approx. 7kg
