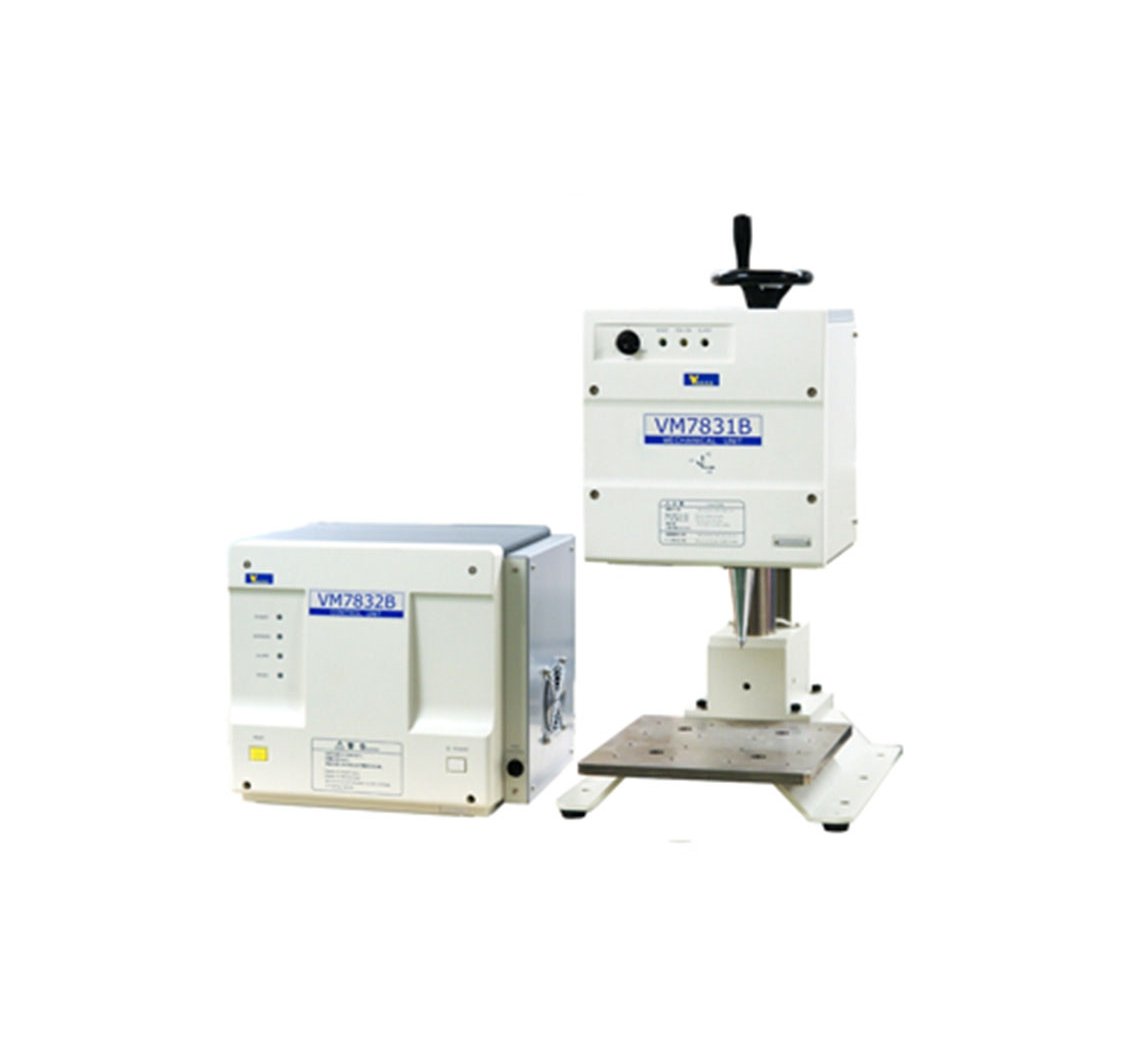

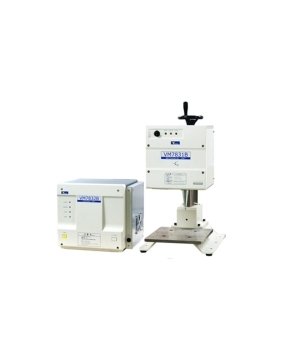

VECTOR VM7830B Ultrasonic Pen Marking Machine
Vector VM7830 is capable of beautiful and permanent marking on both metallic and non-metallic material (steel, aluminum, stainless steel, hard plastic). The machine is useful for marking for production control, quality assurance, PL, ISO, Parallel and RS-232C ports equipped as standard specifications, connectable to the sequencer for automatic marking in the production line.
Vector VM7830B Ultrasonic Pen Marking Machine Features :
- No air devices and air-related settings required

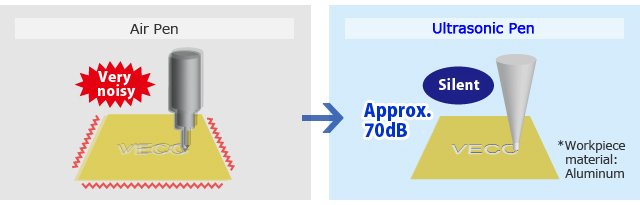

- Low noise operation by an ultrasonic pen.
- Pen pressing power in 3 levels
- No wear parts except for stylus
| Pen type | Ultrasonic pen |
|---|---|
| Marking range | 80×30 mm |
| Pen stroke | Approx. 12mm (Z-axis marking range: 10mm) |
| Workpiece material | Steel, aluminum, copper and their alloys, stainless steel, hard plastic, etc. (depends on the type of stylus) |
| Available characters | Alphabet (uppercase/lowercase), number, symbol (18 types) |
| Character size | 0.5~30mm (in increments of 0.5mm) |
| Font | 3 types |
| Character orientation | 8 directions |
| Number of jobs | 255 jobs (J1~J255) |
| Number of sequences | 255 sequences (S1~S255) |
| String length | 1~36 characters (varied by character size) |
| Marking function | Increment: 1~10 digits Calendar: Year. Month. Day. Hour. Minute. Second Circular arc marking: Available Special character: Supported (16 types) |
| Interface | I/O(Parallel): 50pin, NPN connect RS-232C (Serial): 9pin |
| Power supply | Single-phase AC100V~230V 50 / 60 Hz, Approx. 400VA |
| Environmental condition | Operating temperature: 0~40 ℃ Storage temperature: -5 ~ +50 ℃ Relative humidity: 90%RH or less (no condensation) |
| Dimensions (W×H×D) | Mechanical Unit: 207×215×185mm Control Unit: 318×273×261mm |
| Weight | Mechanical Unit: Approx. 7.0kg Control Unit: Approx. 9.0kg |
To receive further information on VM7830B, please complete the following form. We will reply as soon as possible.
