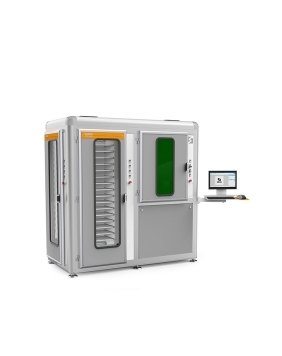

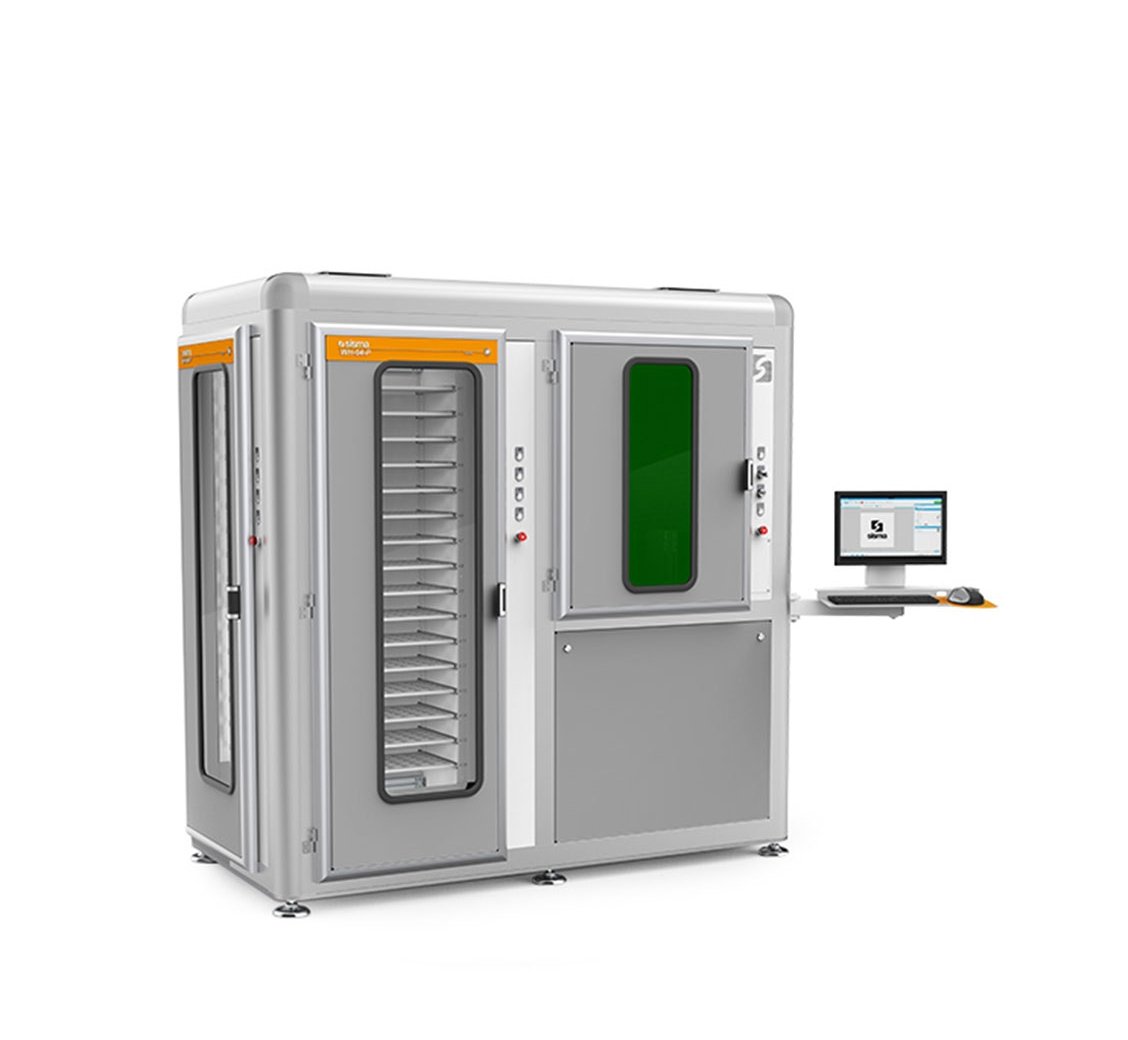

SISMA WH-64-P Marking-station-with-automated-storage
PRODUCTIVITY AND FLEXIBILITY
64 customizable pallets on 4 columns: different objects can be worked on each pallet, with a possibility of loading/unloading during operation.
ADVANCED FUNCTIONS
Unattended work cycle with automatic shutdown on completion (Energy Saver), remote monitoring and statistics report of marking jobs.
DEDICATED SOFTWARE
Integrated Coaxial Vision System with high precision centering and automatic recognition of the pieces, control interface that allows marking jobs management for each pallet (even during operation).
WH-64-P
|
Laser sources |
10 W - 20 W - 30 W - 40 W - 50 W - 70 W - 100 W |
|
Pallet dimension |
300 mm x 300 mm 13 mm |
|
Max piece height |
40 mm - 150 mm (removing odd-numbered pallets) |
|
Dedicated software |
Included |
|
Max power absorbed |
1,5 kW |
|
Power supply |
230V±15% 50/60 Hz 1ph 1,5kW |
|
Dimensions |
204 cm x 110 cm x 213 cm |
