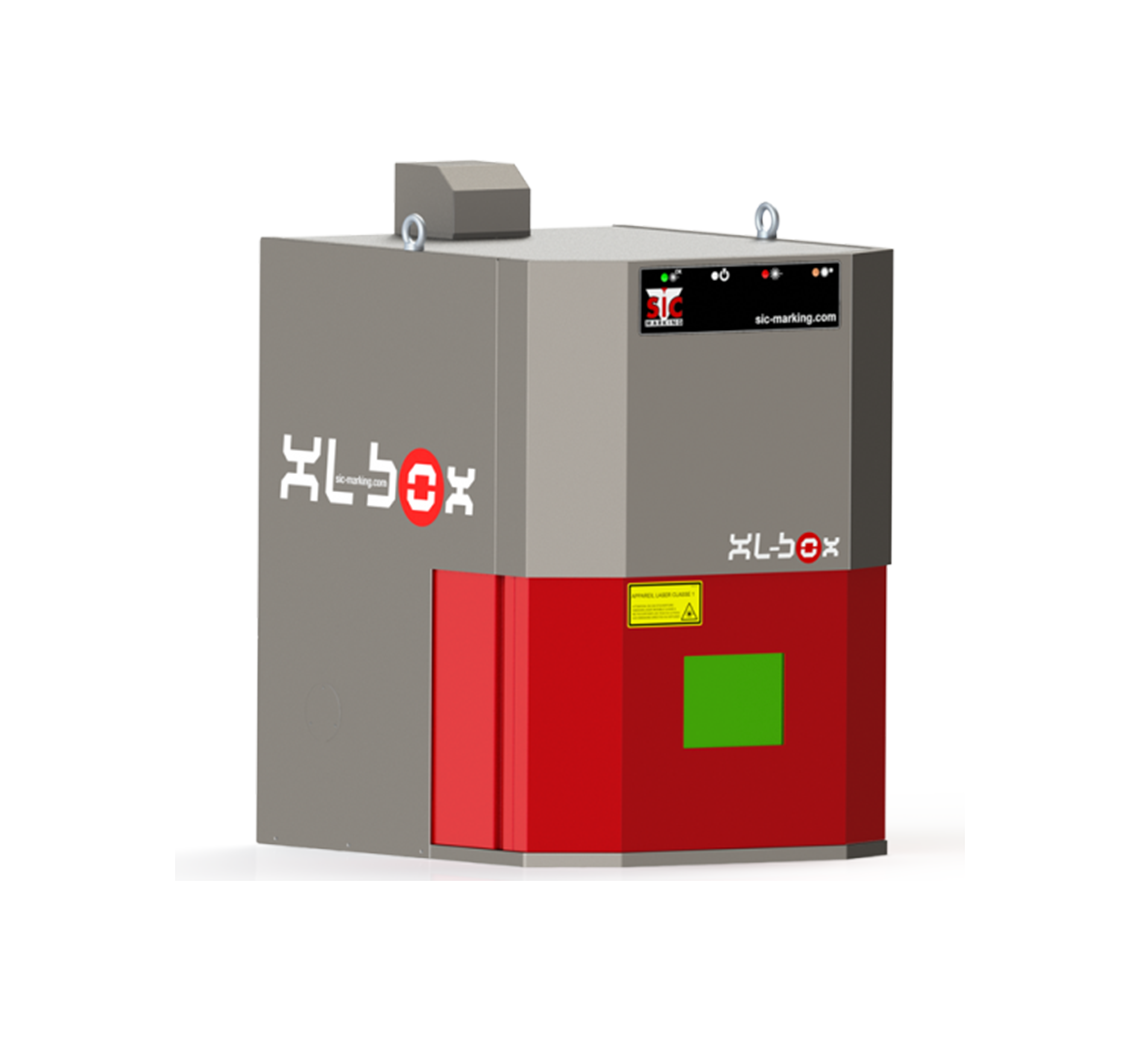

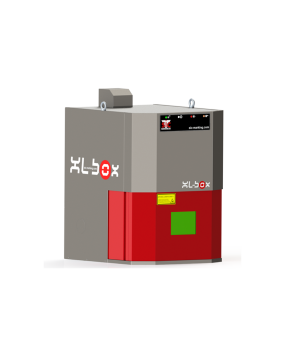

SIC MARKING XL-Box Laser system

As its name suggests, SIC’s XL-BOX is the flagship among a range of laser workstations, with features and dimensions designed to increase productivity and adapt to the evolving needs of manufacturing and production lines.

Modeled after the ever popular L-BOX, XL-BOX has larger internal dimensions, with a 570 x 564 mm  work area that more comfortably accommodates larger sized components. Constructed of solid steel, it’s a compact 655 mm  wide enabling its user to work comfortably when loading/unloading parts to be marked.

Much larger than its predecessor, XL-BOX is equipped with a pneumatically-powered, intuitively secure door that automatically locks when the cycle starts and opens when the marking is finished. Operated with the push of a button, it’s a smooth action entry that allows access on all three sides and is equipped with a large viewing window. The “smart” Z-axis operates on a 235 mm (9-1/4”) motorized system; with the additional help of two red focal pointers, focusing a precise mark is simple.

XL-BOX is equipped with a high powered, pulsed wave ytterbium-doped fiber laser which allows shallow or deep markings of alphanumeric codes, barcodes, and 2D Data Matric codes, and on all metals and some plastics. It is easy to operate, even for users with minimal training in laser technology.

This versatile laser marking workstation is operated via SIC’s proprietary, user-friendly software: SIC LASER PC. This software – included with the package – can be run using Windows on any PC, and offers multiple configuration options.

SIC MARKING LASER TECHNOLOGY

Laser marking is recommended for high-volume production, where speed and accuracy are a must. Primarily used for Direct Part Marking (DPM) or Label Marking, the resulting impressions are precise, clear, and readable by the human eye, or verified with vision technology (camera).
